CRW 2444-01
Image 1 of 8

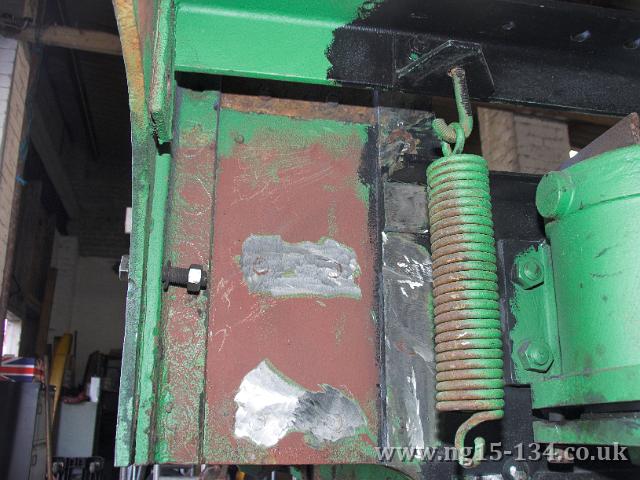

Ground off rivet heads on the rear drag box. These will shortly be drilled out.
Photo: Laurence Armstrong

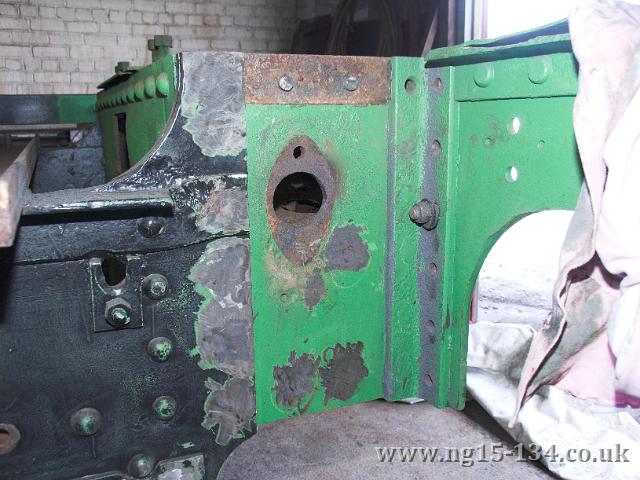

CRW 2445-01
Image 2 of 8

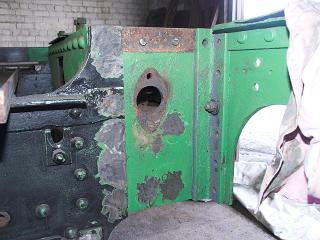

Ground off rivet heads on the rear drag box. These will shortly be drilled out.
Photo: Laurence Armstrong
CRW 2446-01
Image 3 of 8

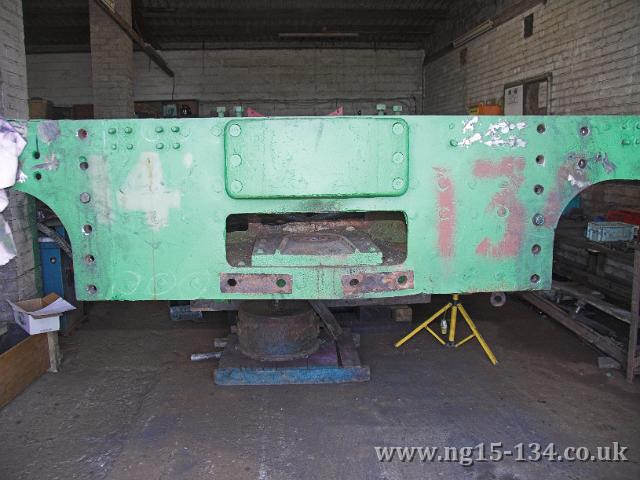

Rivets already removed from the rear drag box beam. A number of bolts have now replaced these to enable later controlled removal.
Photo: Laurence Armstrong
CRW 2442-01
Image 4 of 8

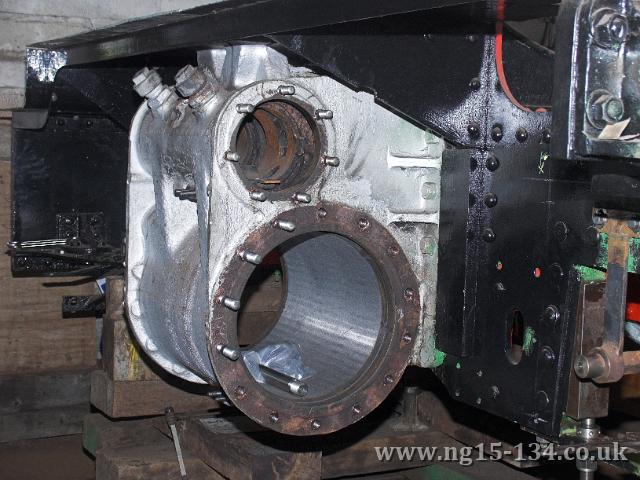

The rear of the left hand (Fireman's) side cylinder showing studs being inserted. It also shows the fresh finish to the newly rebored cylinder.
Photo: Laurence Armstrong
CRW 2447-01
Image 5 of 8

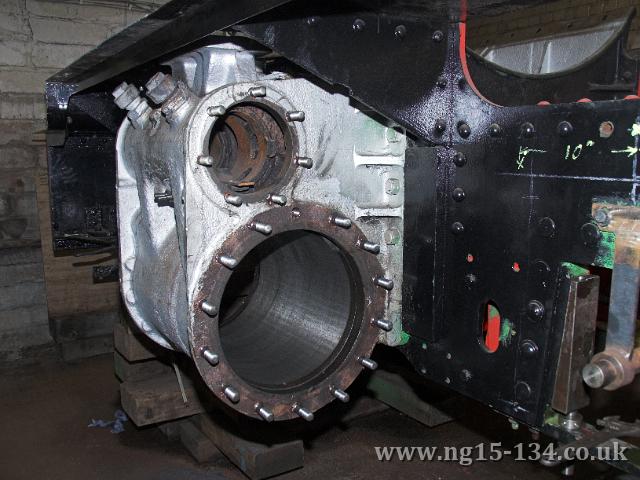

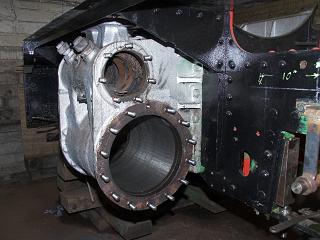

The rear of the left hand (Fireman's) side cylinder showing studs inserted and tightened. The cylinder bore has now been greased to prevent rusting.
Photo: Laurence Armstrong

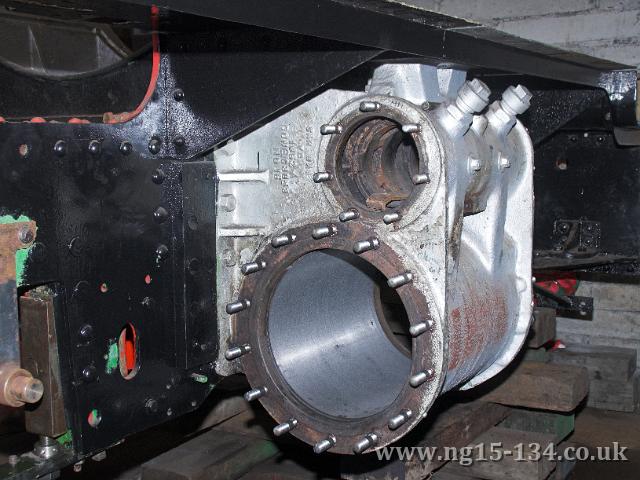

CRW 2436-01
Image 6 of 8
The front of the left hand (Fireman's) side cylinder showing the new studs inserted.
Photo: Laurence Armstrong

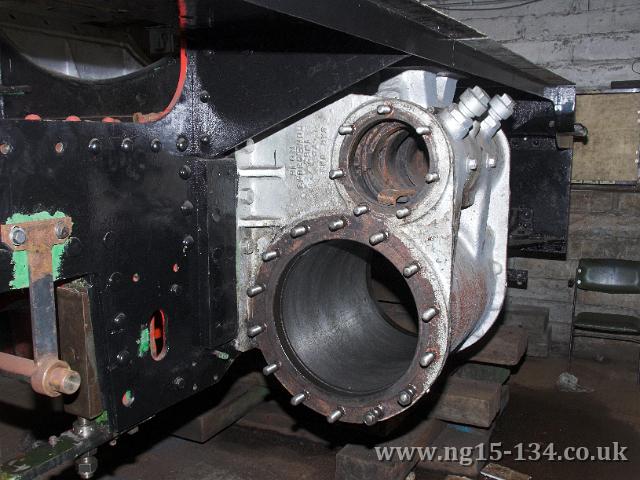

CRW 2450-01
Image 7 of 8

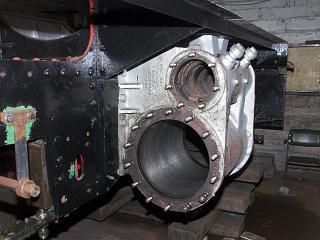

The rear of the right hand (Driver's) side cylinder showing studs inserted.
Photo: Laurence Armstrong

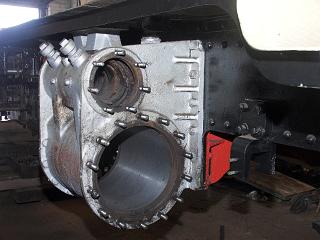

CRW 2440-01
Image 8 of 8

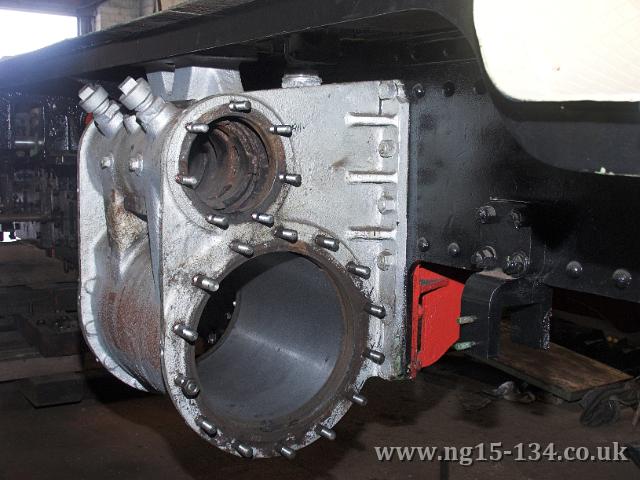

The front of the right hand side cylinder showing studs inserted.
Photo: Laurence Armstrong
