20140510 173013
Image 1 of 8

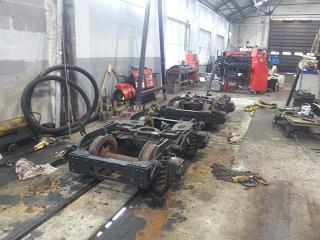

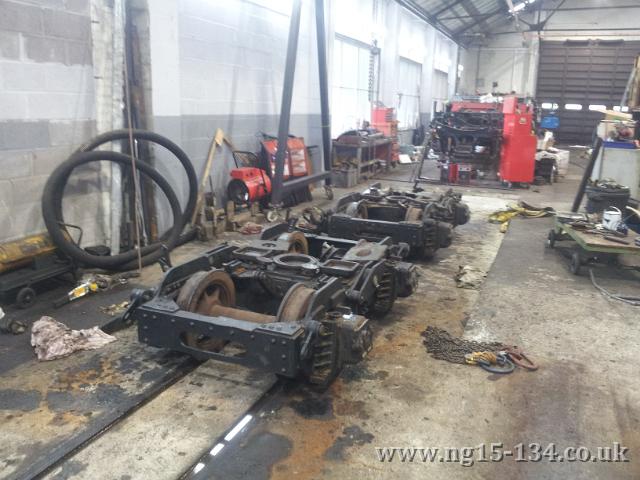

The tender bogies returned from Boston Lodge after being worked on there with modifications to the fittings for the brake gear.
Photo: Andie Shaw
Tender bogies 3
Image 2 of 8

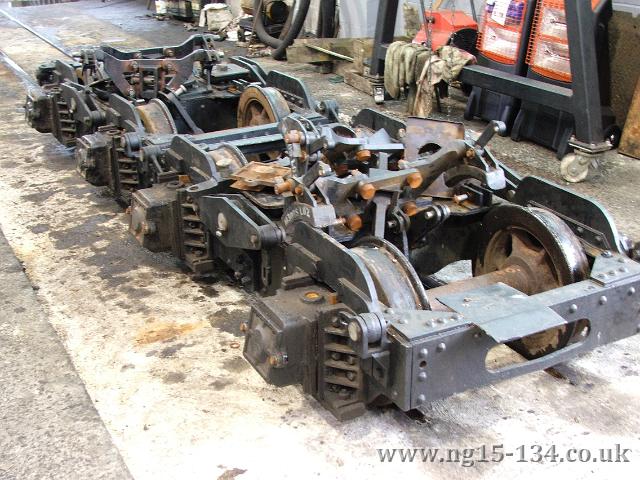

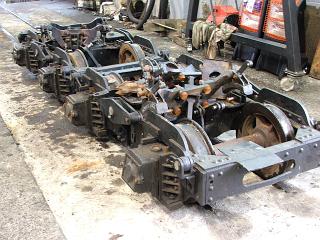

Another view of the tender bogies. The wheels still need to be re-profiled and the axles machined to take roller bearings.
Photo: Clive Briscoe
Tender bogies 1
Image 3 of 8
The tender bogies now at Dinas.
Photo: Clive Briscoe
Tender bogies 2
Image 4 of 8
A close up of one of the tender bogies showing the axle boxes that will be changed to roller bearings.
Photo: Clive Briscoe
Loco horn guide
Image 5 of 8

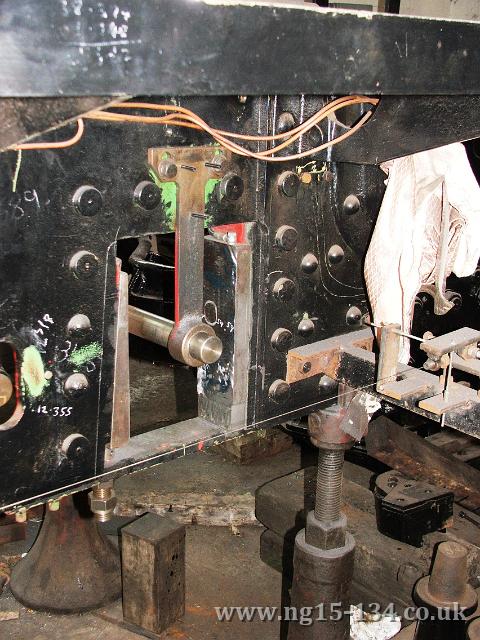

The horn guide slipper are being aligned to the axle centreline bar. This in turn has previously been aligned to the piano wire that represents the centreline of the cylinders.
Photo Clive Briscoe
134 LHS horn guides
Image 6 of 8
A view of the left hand side horns again showing the axle centreline bar and piano wire.
Photo Clive Briscoe
134 RHS horn guide
Image 7 of 8

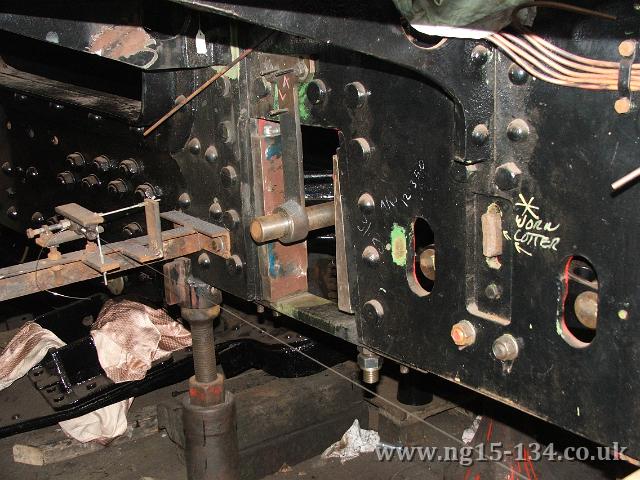

A view of the right hand side horn giude again showing the axle centreline bar and piano wire.
Photo Clive Briscoe

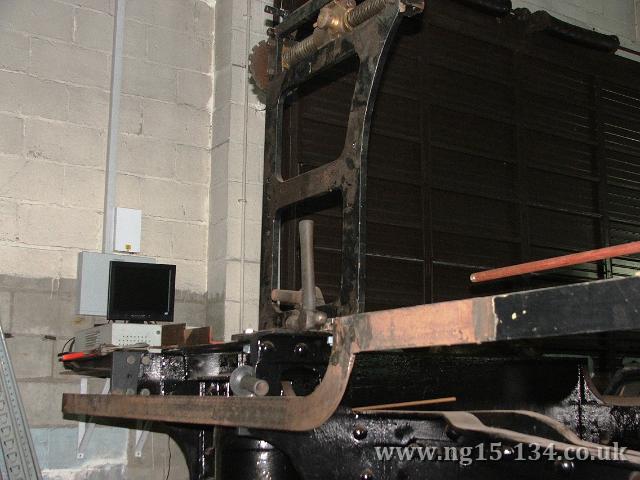

134 RHS cab support angle
Image 8 of 8
The progressing cab support framework.
Photo Clive Briscoe
