The April 2017 working weekend photos
Gallery » Working Parties » 2017 Working Parties » WWEApr17
IMG 1485
Image 1 of 8

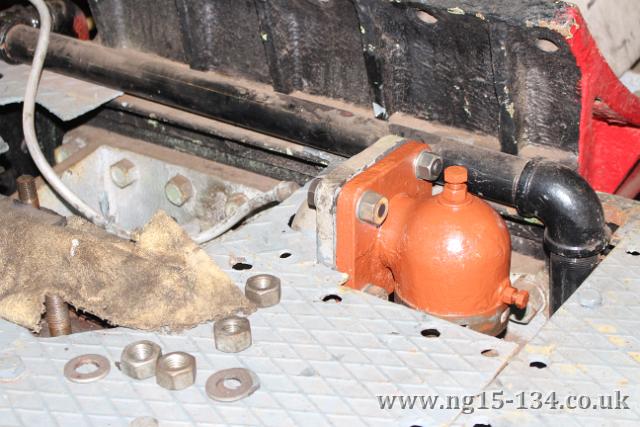

The refurbished right hand cylinder Snifting Valve refitted.
Photo: Laurence Armstrong
IMG 1486
Image 2 of 8

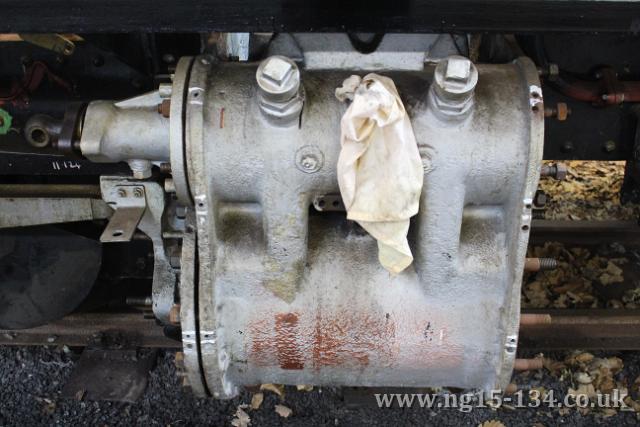

Most of the cylinder cladding attachment bolts had been sheard off at some point, including some that had been repositioned several times. We therefore started to drill out to their original position. These will be retapped next time.
Photo: Laurence Armstrong
IMG 1488
Image 3 of 8

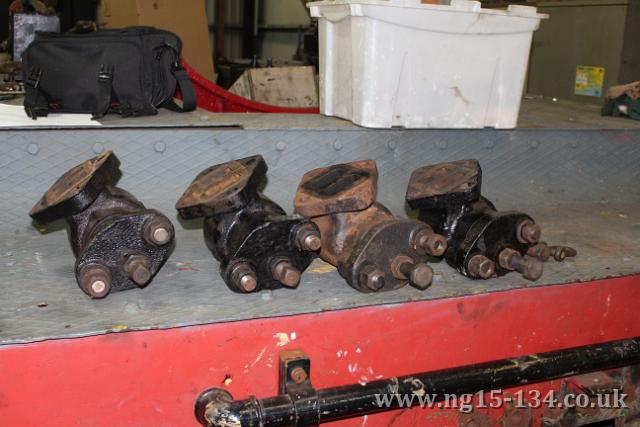

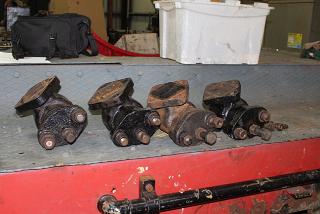

The four refurbished Vacuum By-pass Valves ready to be fitted.
Photo: Laurence Armstrong
IMG 20170409 111550
Image 4 of 8

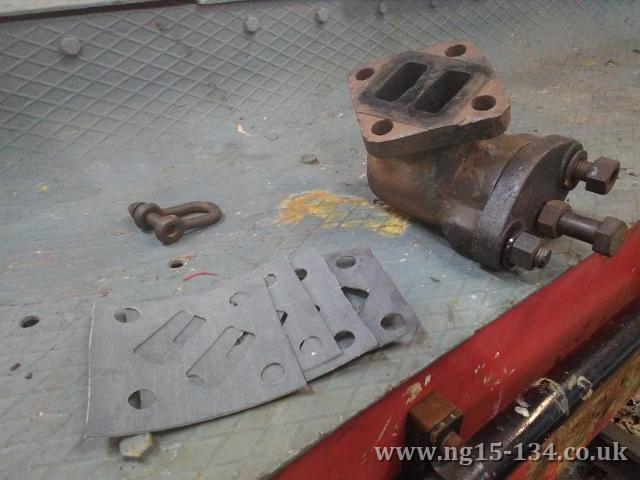

Four seals ready for fitting the refurbished Vacuum By-pass Valves.
Photo: Laurence Armstrong
IMG 1487
Image 5 of 8

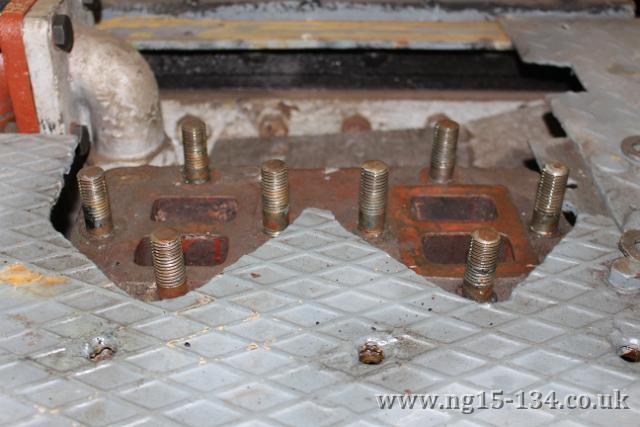

The ports on the left hand cylinder for the Vacuum By-pass Valves having their faces cleaned ready to take the refurbished valves.
Photo: Laurence Armstrong
IMG 1489
Image 6 of 8

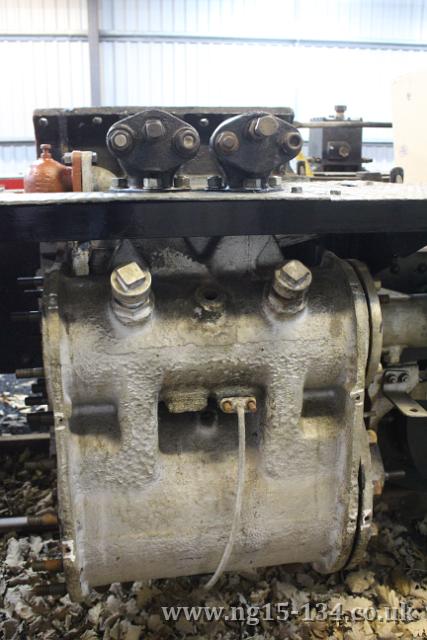

The left hand cylinder showing the refurbished Vacuum By-pass Valves refitted. These still need to have their covers sealed and turned the corrcet way up. It also showes the drilled out caldding attachment holes ready for retapping next time.
Photo: Laurence Armstrong
IMG 1493
Image 7 of 8

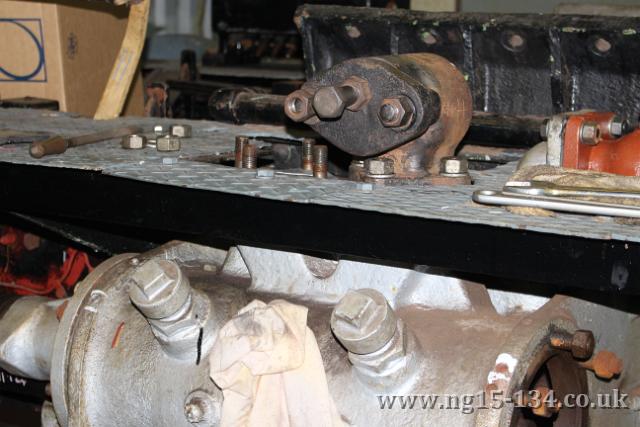

One of the the refurbished Vacuum By-pass Valves refitted to the right cylinder.
Photo: Laurence Armstrong
IMG 1484
Image 8 of 8

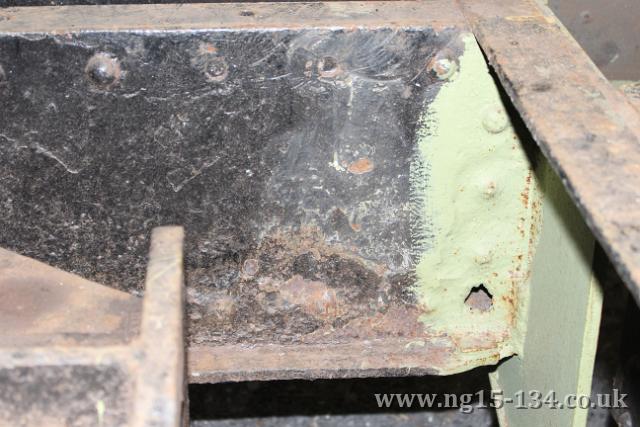

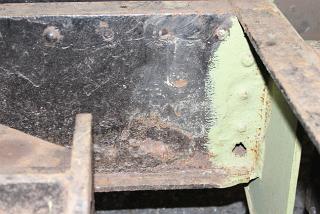

We're also starting to look at what's need to get the tender chasis more mobile and one job needed is to deal with an attack of 'rust moth' in the rear drag box.
Photo: Laurence Armstrong
