Gallery » Working Parties » 2017 Working Parties » WWEDEC17
100 1019
Image 1 of 6

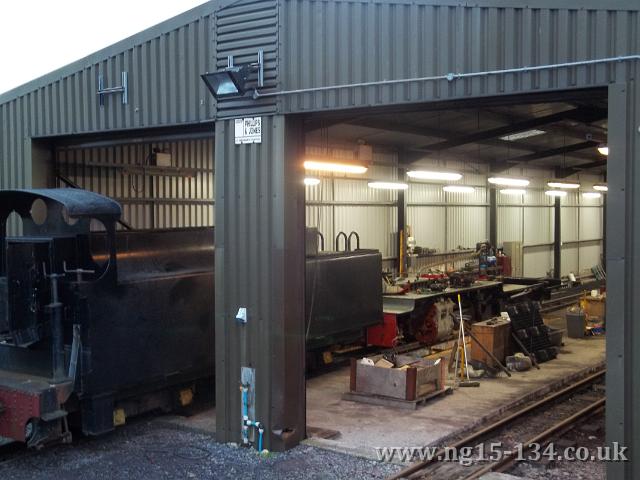

134's frames over the carriage shed pit at Dinas. This is to enable the refurbishment to be completed of the cylinder cladding bolt holes on their underside.
Photo: Laurence Armstrong
100 1021-light
Image 2 of 6

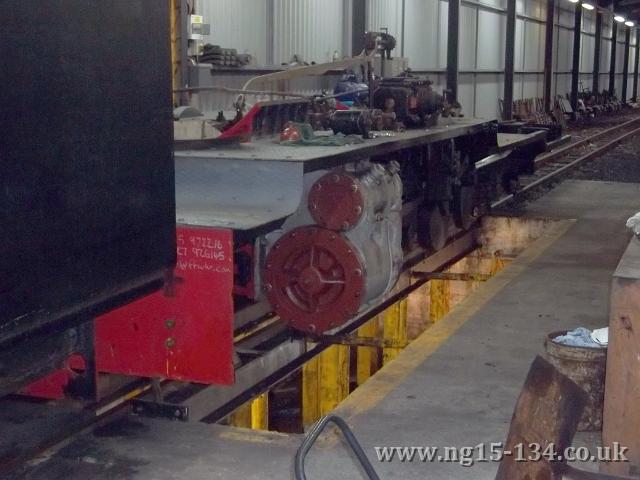

134's frames over the carriage shed pit at Dinas to enable the refurbishment of the underside cylinder cladding bolt holes. In some cases this meant the drilling and tapping of new holes.
Photo: Laurence Armstrong
100 1022
Image 3 of 6

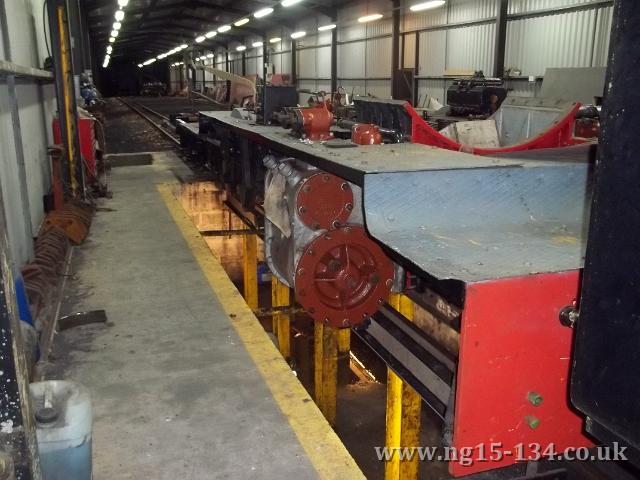

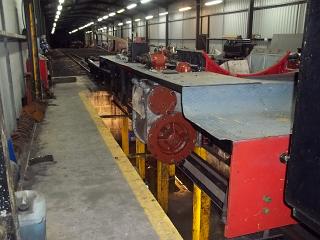

134's frames over the carriage shed pit at Dinas to enable the refurbishment of the underside cylinder cladding bolt holes. In some cases this meant the drilling and tapping of new holes.
Photo: Laurence Armstrong
20171210 140204
Image 4 of 6

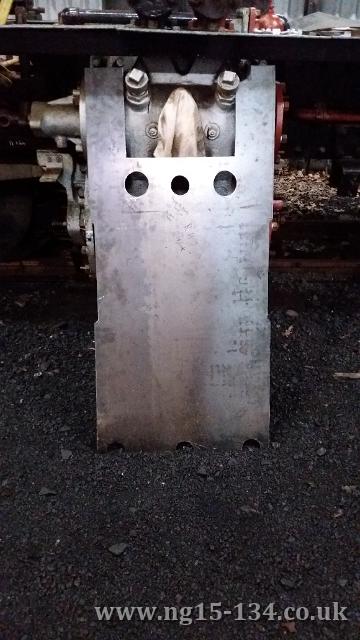

The newly manufactured cylinder cladding for the right hand cylinder. The bending of these was started, however, as there is a learning curve needed to use the roller used to do the bending, the job will be completed next time.
Photo: Ben Smith
20171210 143531
Image 5 of 6

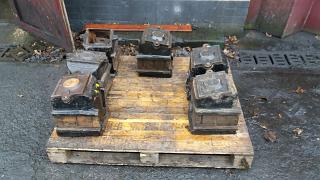

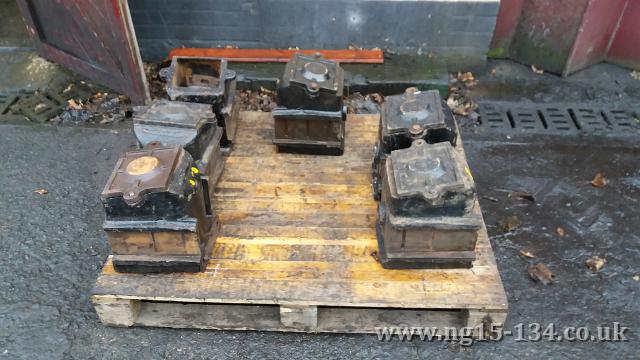

Six of the tender axle boxes after being thoroughly cleaned.
Photo: Ben Smith
20171210 151744
Image 6 of 6

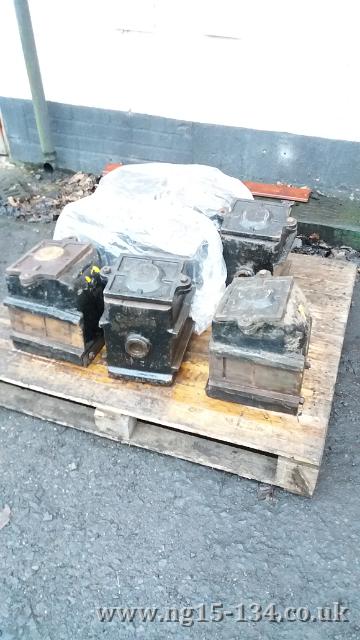

The tender axle boxes after being thoroughly cleaned and in the process of being protected. These will be collected by Boston Lodge as they need some remedial work to areas of wear.
Photo: Ben Smith
