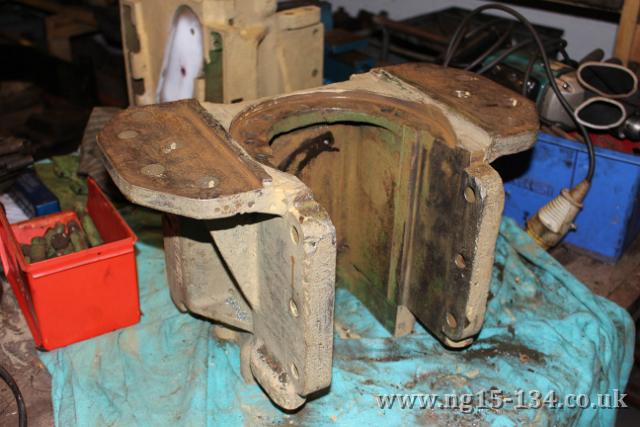

One of the rear pony truck axle boxes having its various internal oilways cleaned out and the threaded holes re-tapped.
Photo: Laurence Armstrong
IMG 1430
Image 2 of 8

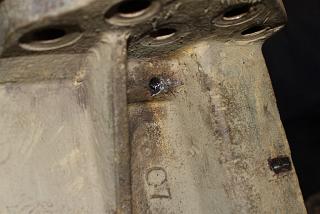

The internal oilway is drilled in three dimensions, X, Y and Z. 'X' and 'Y' can be cleaned from the outside, however the 'Z' axis that joins them internally is a blind passageway only accessible from a blanked-off drilling hole on the outside of the casting. We had to remove this blanking and the picture shows the entrance after cleaning the oilway and re-tapping. It is now ready to be blanked off again.
Photo: Laurence Armstrong
IMG 1434
Image 3 of 8

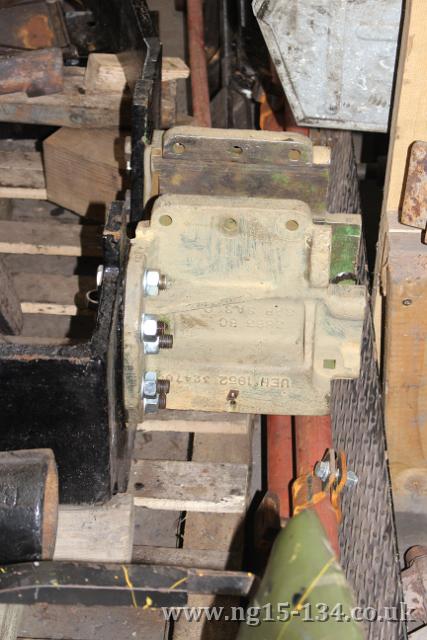

One Axlebox refitted.
Photo: Laurence Armstrong
IMG 1436
Image 4 of 8

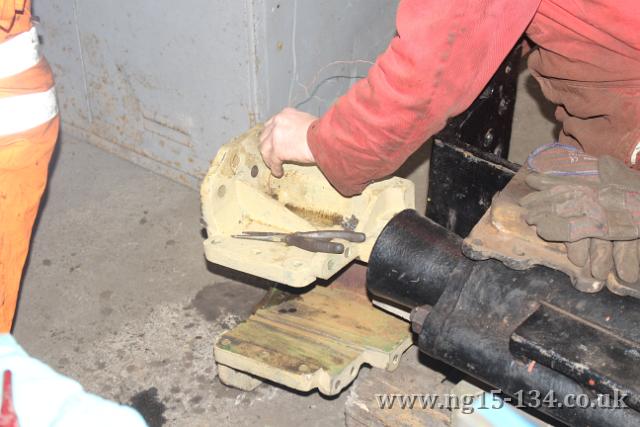

Cleaning out the 'Z' oilway on the other axle box after removing the blanking stud.
Photo: Laurence Armstrong
IMG 1441
Image 5 of 8

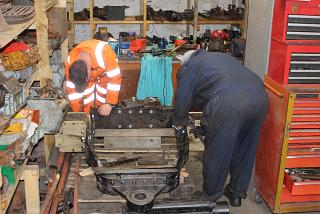

Fitting the second cleaned axle box to the rear pony truck.
Photo: Laurence Armstrong
IMG 1444
Image 6 of 8

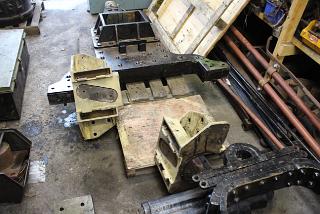

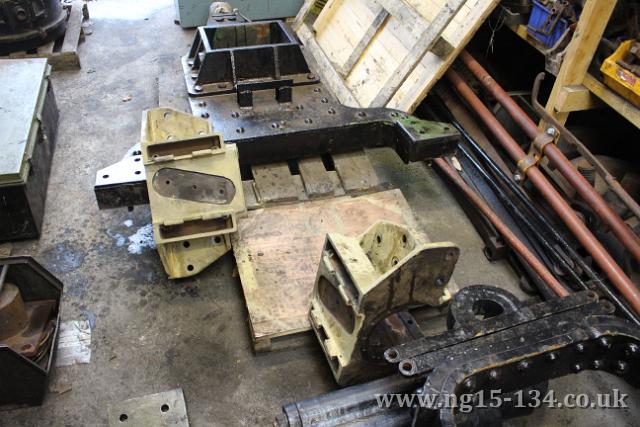

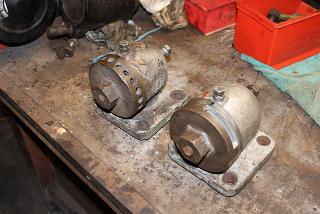

Working on the axle boxes for the front pony truck.
Photo: Laurence Armstrong
IMG 1445
Image 7 of 8

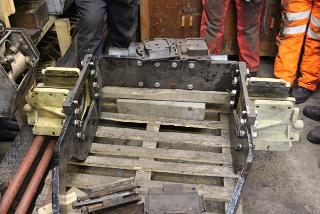

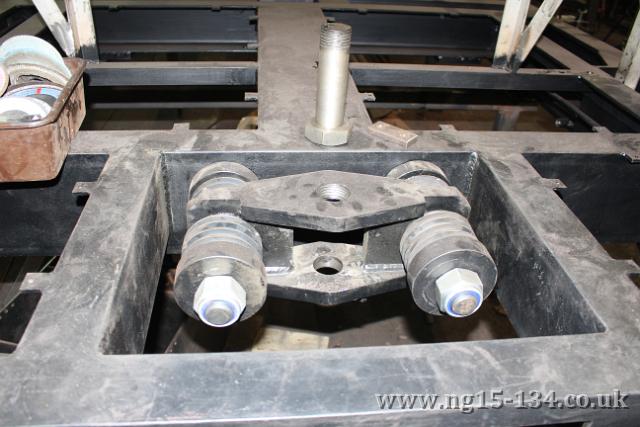

The rear pony truck with the two axle boxes and both straps in place.
Photo: Laurence Armstrong
IMG 1427
Image 8 of 8

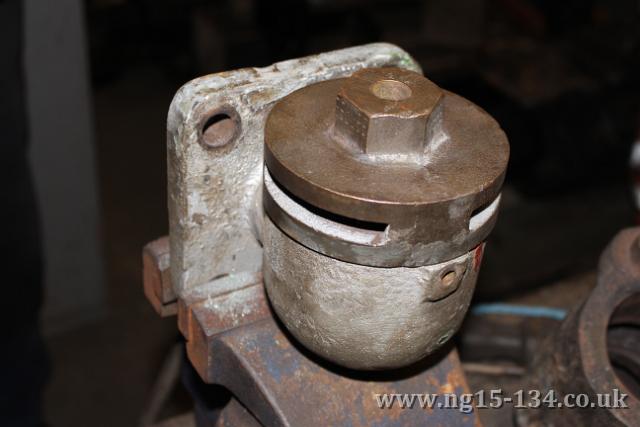

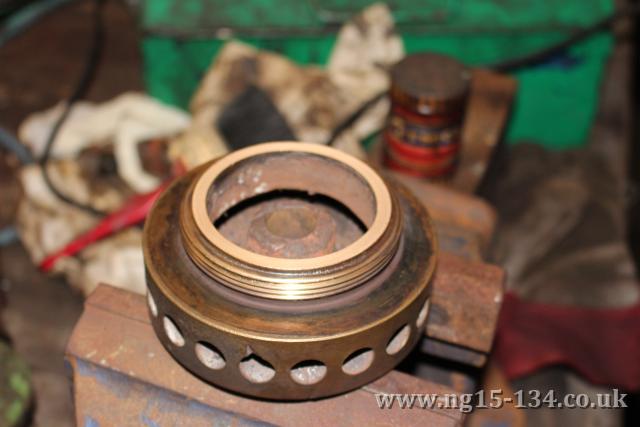

The Automatic Vacuum By-pass Valve. This is the newly lapped seating face.
Photo: Laurence Armstrong
