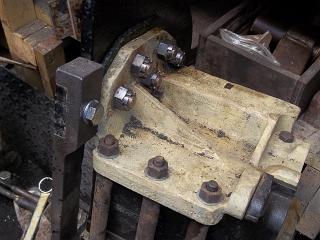

The rear pony truck with five of the fitted bolts now tightened into place. The nuts will be fitted with split pins at the next working party.
Photo: Laurence Armstrong
100 0961
Image 2 of 6

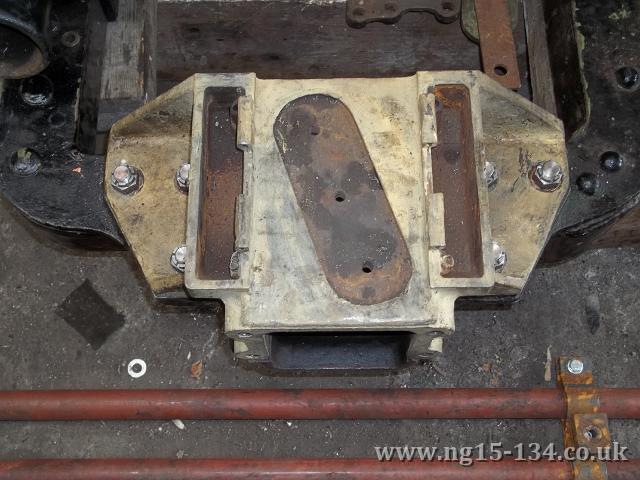

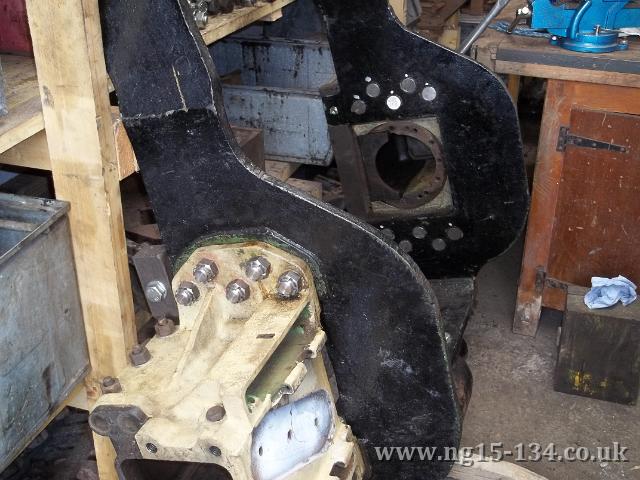

The completed rear pony truck on the Sunday afternoon.
Photo: Laurence Armstrong
100 0957
Image 3 of 6

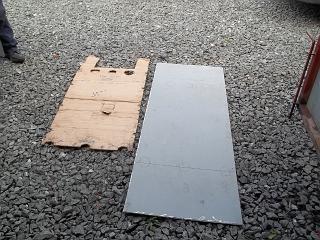

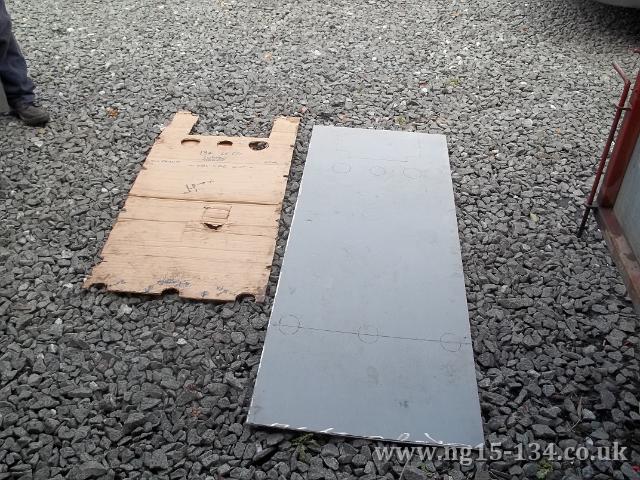

The cardboard template and the sheet steel cut to size for the cylinder cladding. This end is the underside of the cylinders and the three holes are for the drain cocks. The line marked through these is where the cladding will be split and will therefore need to have a joint there in order to fit it round the drain cocks.
Photo: Laurence Armstrong
100 0958
Image 4 of 6

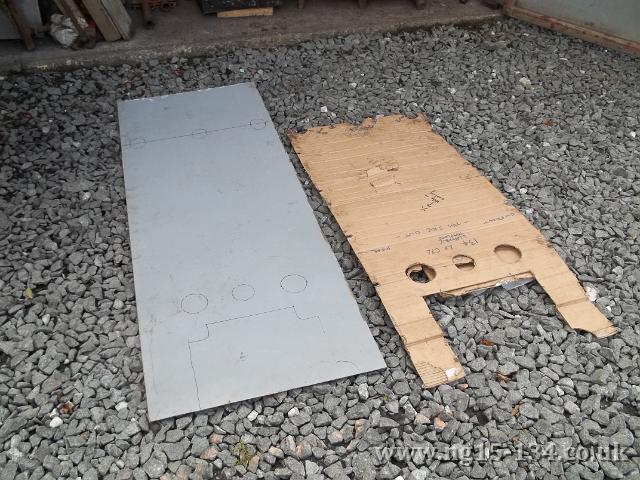

The marked out top end of the cylinder cladding.
Photo: Laurence Armstrong
100 0960
Image 5 of 6

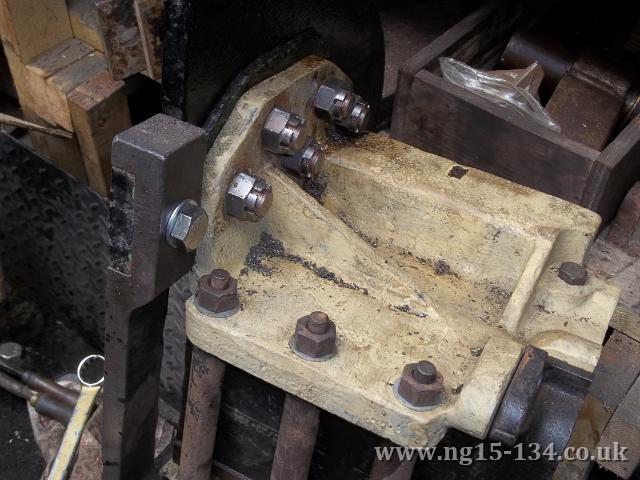

These are the six horizontal face fitted bolts in place - the four on the vertical face (hidden beneath the axle box) are yet to be fitted.
Photo: Laurence Armstrong
100 0959
Image 6 of 6

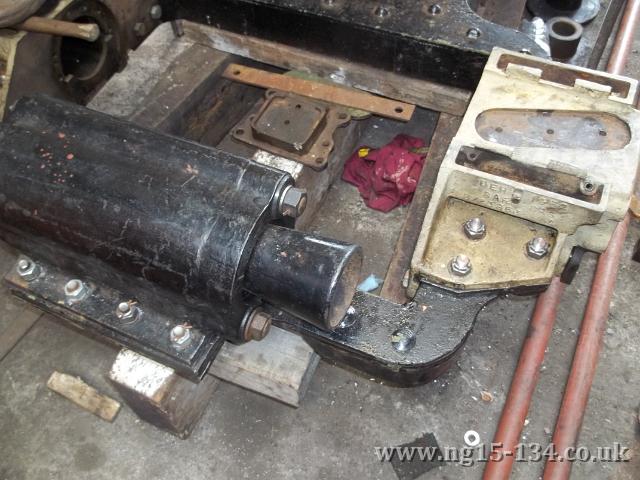

The front Krauss-Helmholtz pony truck at the end of Sunday showing the fitted bolts tightened into place and two of the centralising unit bolts now with securing split pins.
Photo: Laurence Armstrong
