Image 1 of 8

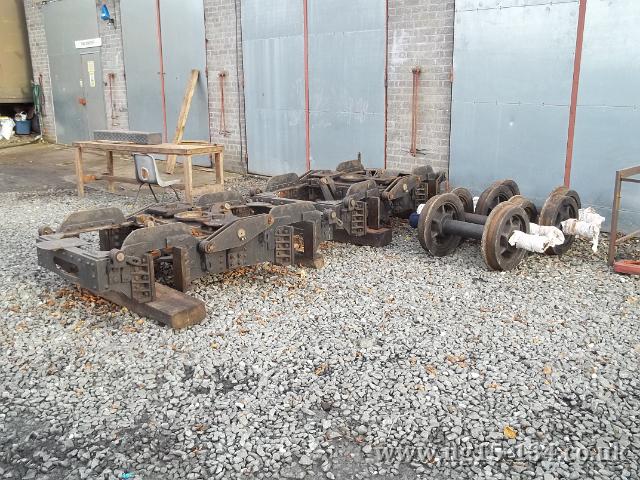

First job of the weekend was the removal of the wheels from under the tender bogies ready for re-profiling.
(Photo: Laurence Armstrong)
100 1000
Image 2 of 8

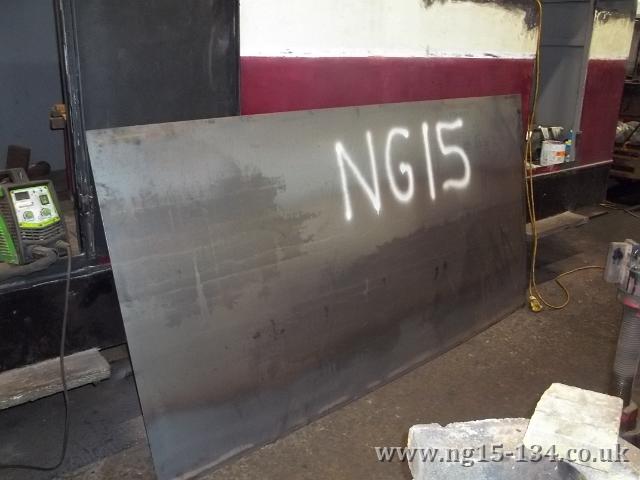

I guess this must be ours then - the 2mm sheet steel waiting for us in the loco shed.
(Photo: Laurence Armstrong)
100 1001
Image 3 of 8

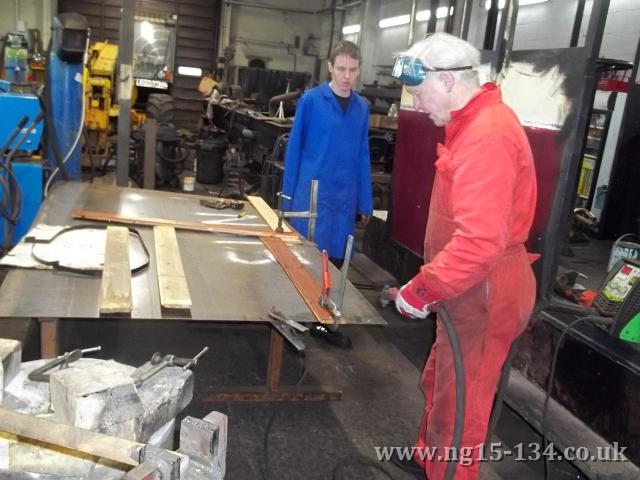

Marking out ready to cut out the profile.
(Photo: Laurence Armstrong)
100 1006
Image 4 of 8

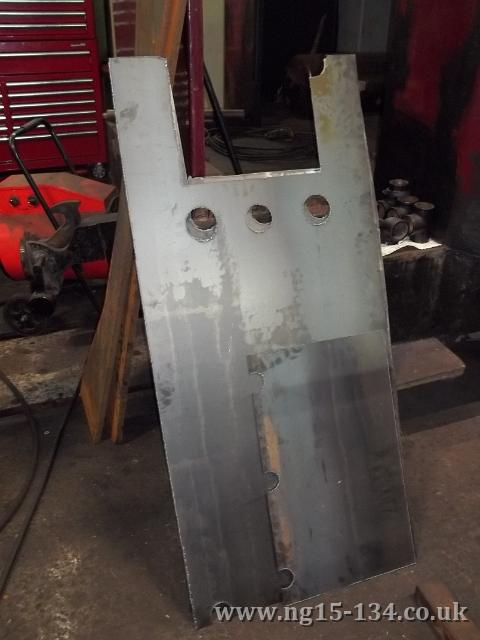

And the results of the afternoons work: the two sets of cylinder cladding cut out but still needing their edges tidying up.
(Photo: Laurence Armstrong)
IMG 1741
Image 5 of 8

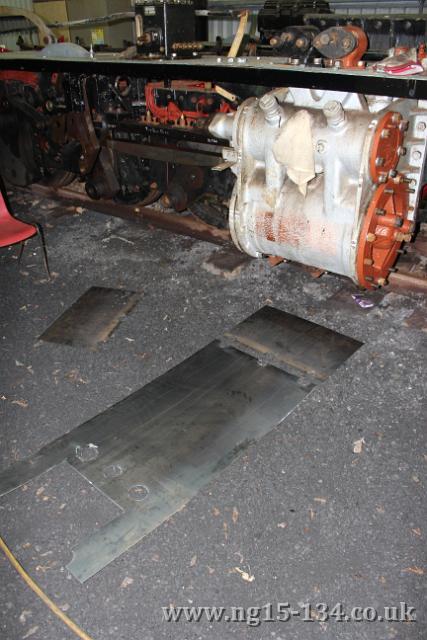

The cladding alongside the cylinder to which it'll be fitted after checking the finer detail of the fit.
(Photo: Laurence Armstrong)
100 1007
Image 6 of 8

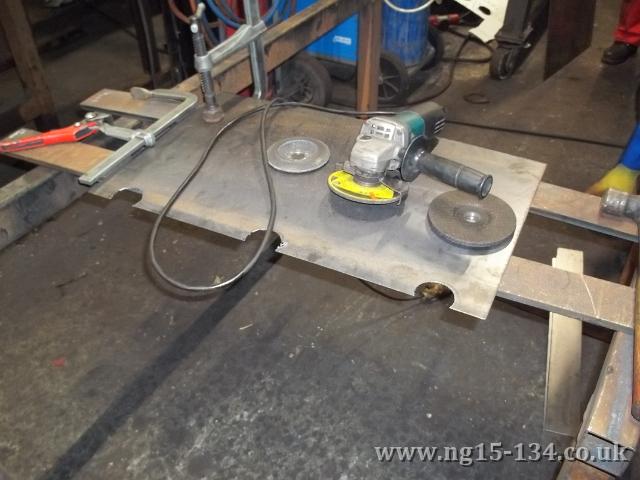

On the Sunday the edges were tidied up and trimmed to the correct size.
(Photo: Laurence Armstrong)
100 1004
Image 7 of 8

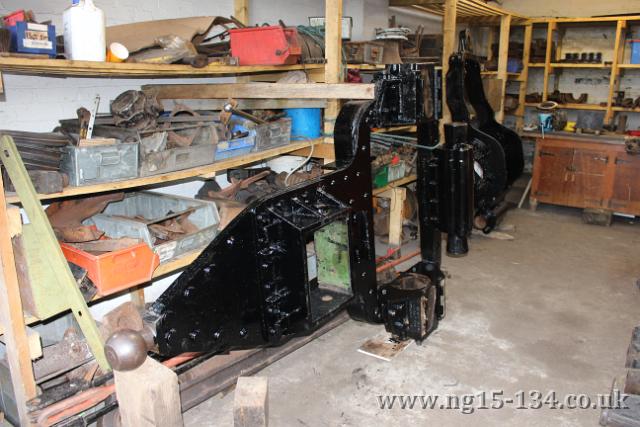

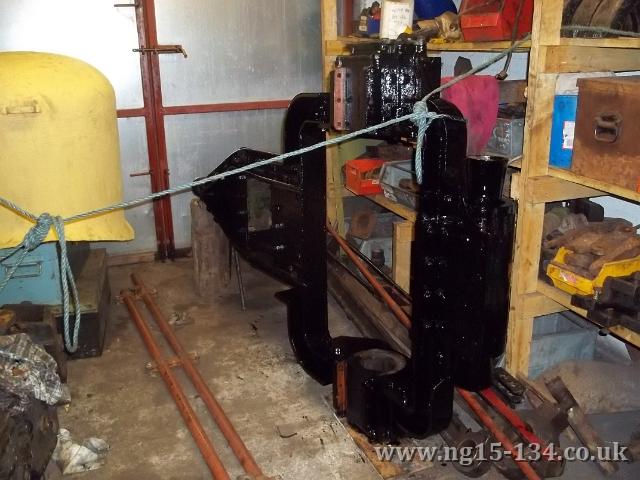

The Krauss-Helmholtz pony truck gleaming in its freshly applied gloss paint.
(Photo: Laurence Armstrong)
100 1008
Image 8 of 8

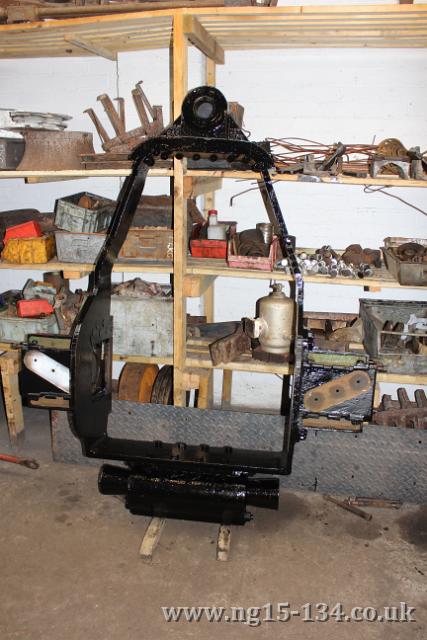

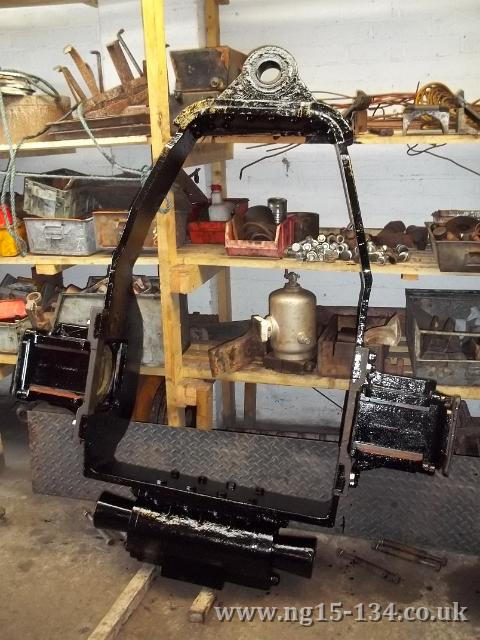

The trailing truck after painting.
(Photo: Laurence Armstrong)
