100 0989
Image 1 of 8

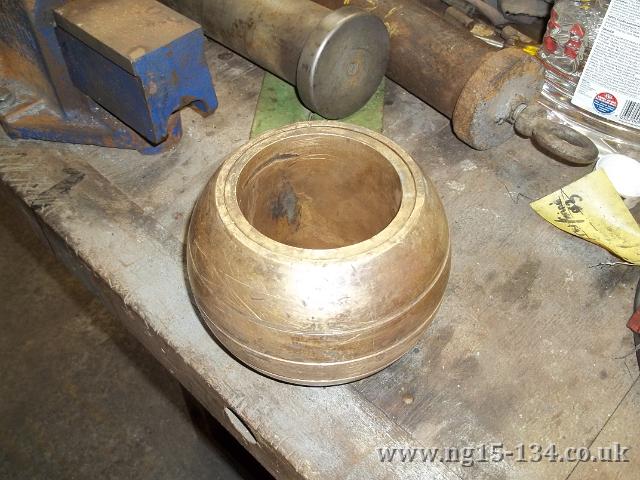

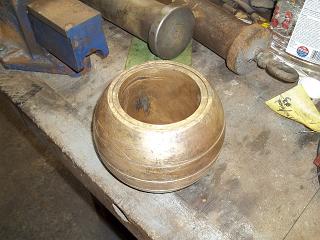

The Krauss-Helmholtz pivot's ball joint cleaned and ready for re-assembly.
Photo: Laurence Armstrong

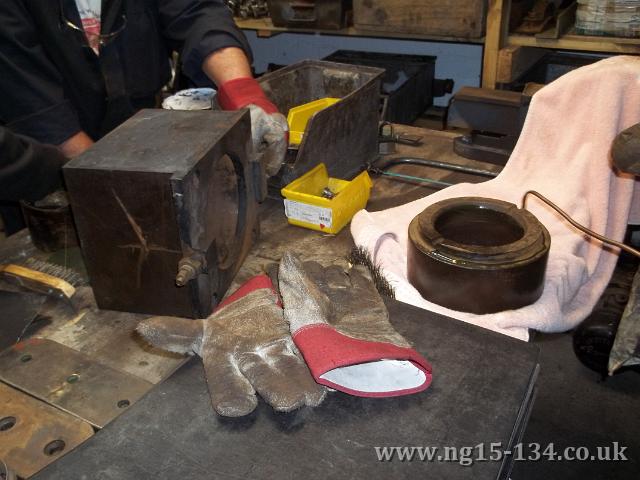

100 0990
Image 2 of 8
Other components for the Krauss-Helmholtz pivot, the box and one of the two ball joint half cups.
Photo: Laurence Armstrong
100 0991
Image 3 of 8

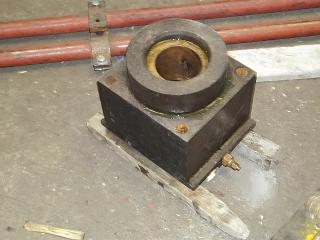

The Krauss-Helmholtz pivot box being re-assembled.
Photo: Laurence Armstrong
IMG 1650
Image 4 of 8

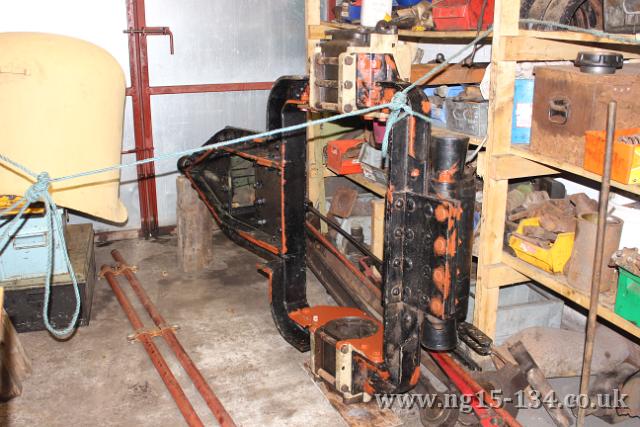

The Krauss-Helmholtz truck after being spot primed.
Photo: Laurence Armstrong
IMG 1651
Image 5 of 8

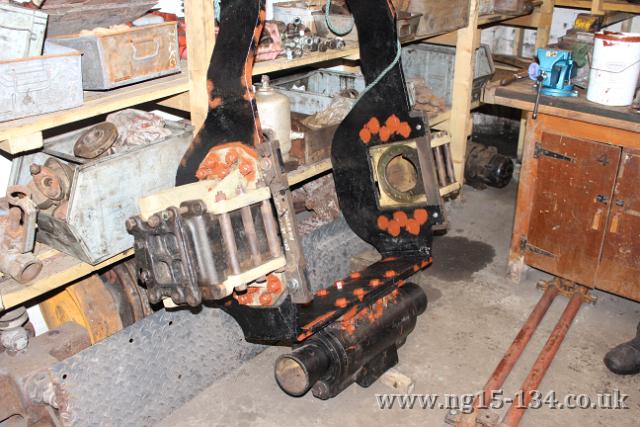

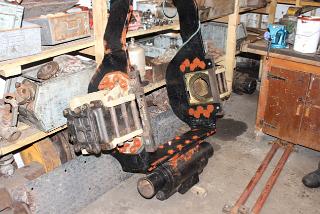

The trailing pony truck after being spot primed.
Photo: Laurence Armstrong
IMG 1652
Image 6 of 8
One of the axle boxs' oilway Z-axis after being blanked off - the slotted end of the screw.
Photo: Laurence Armstrong

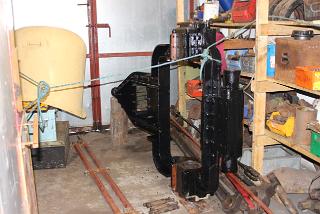

IMG 1653
Image 7 of 8

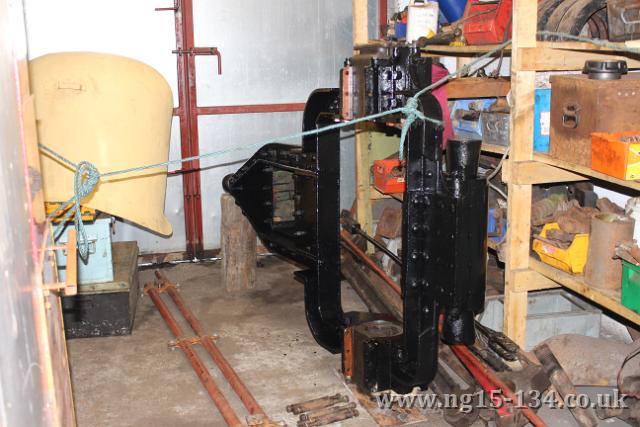

The Krauss-Helmholtz truck after a full coat of paint, although this will still need some areas completing once it's been re-positioned.
Photo: Laurence Armstrong
IMG 1654
Image 8 of 8

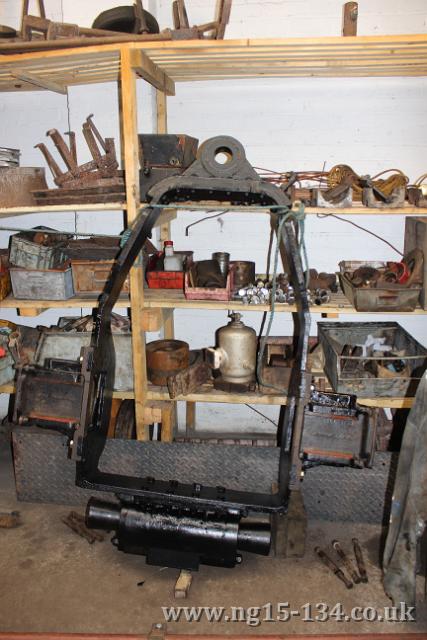

The trailing pony truck after a full coat of paint, and again this this will still need some areas completing once it's been re-positioned and the securing ropes moved.
Photo: Laurence Armstrong
