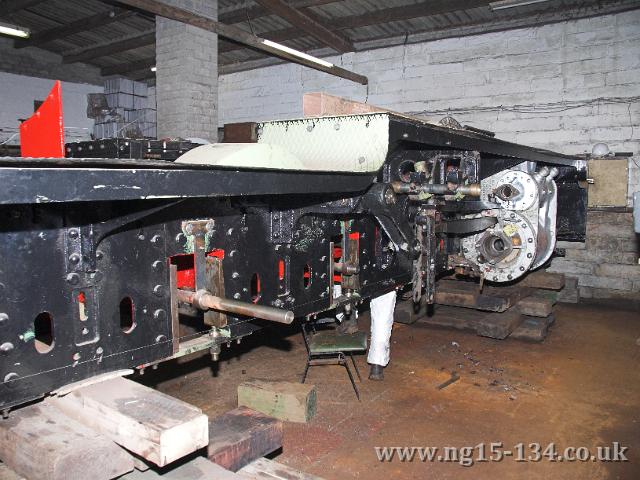

A general view of the current state of the right hand side.
Photo: Laurence Armstrong

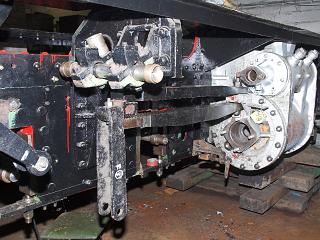

A more detailed view of the right hand side cylinder casting with both cylinder and valve covers in place. The temporarily attached drain cock mechanism can also be seen attached to the frames at the bottom on the cylinder.
Photo: Laurence Armstrong

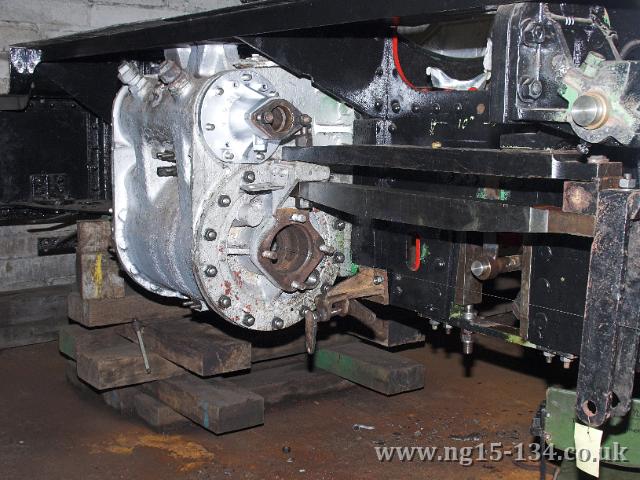

The left hamd side cylinder casting with both cylinder and valve covers in place together with the temporarily attached drain cock mechanism.
Photo: Laurence Armstrong

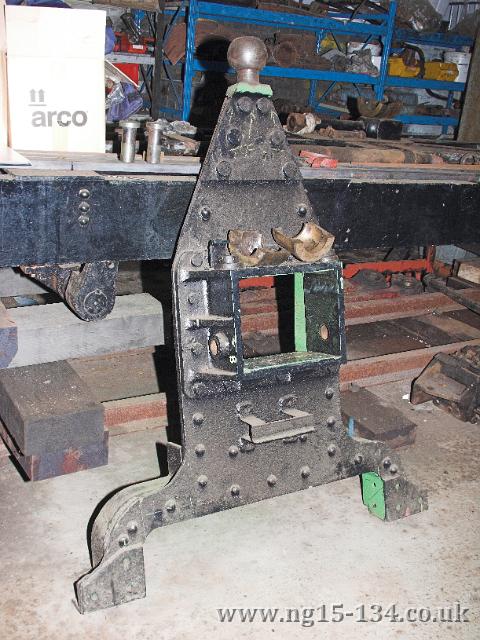

The rear frame stretcher now in undercoat.
Photo: Laurence Armstrong

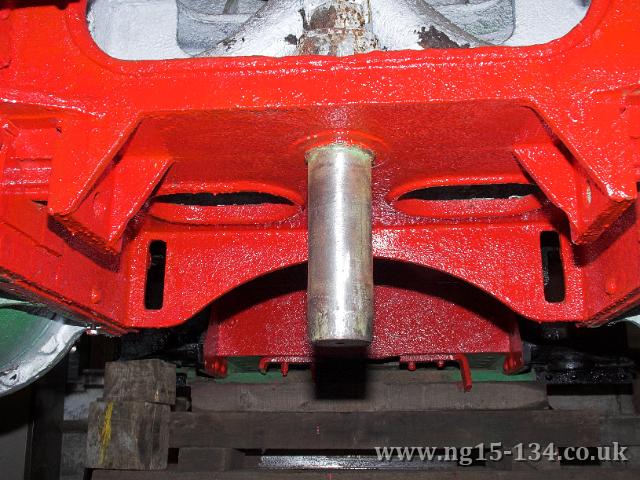

The pivot for the Krauss-Helmholtz truck has been cleaned up for its inspection.
Photo: Laurence Armstrong

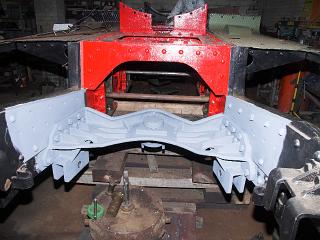

The Krauss-Helmholtz truck itself was also inspected for the work needed before it can be re-attached when the frames are re-wheeled.
Photo: Laurence Armstrong

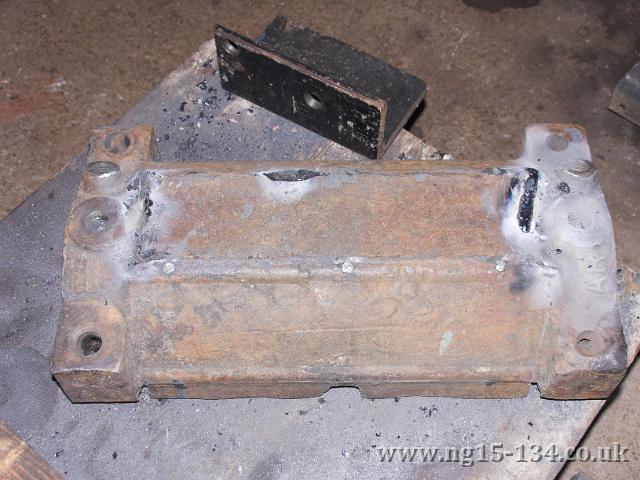

One problem noticed when the Krauss-Helmholtz truck was removed was that the axle bearing was somewhat open to the elements and had been letting water into the bearing.
This was rectified with some 'delicate' welding of the openings in the casing cover.
Photo: Laurence Armstrong

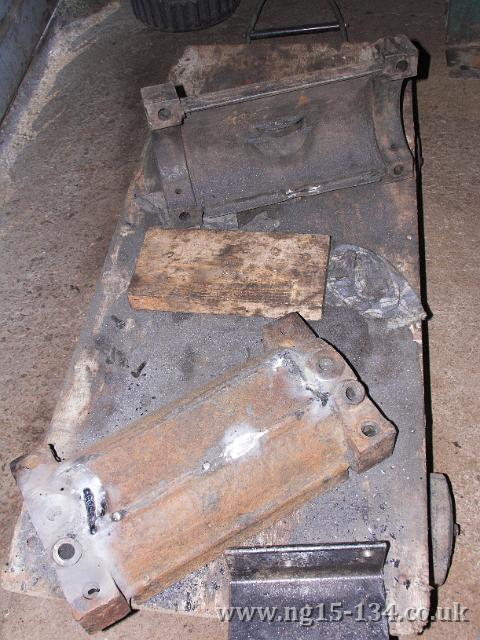

The Krauss-Helmholtz truck axle bearing covers with holes repaired.
Photo: Laurence Armstrong
