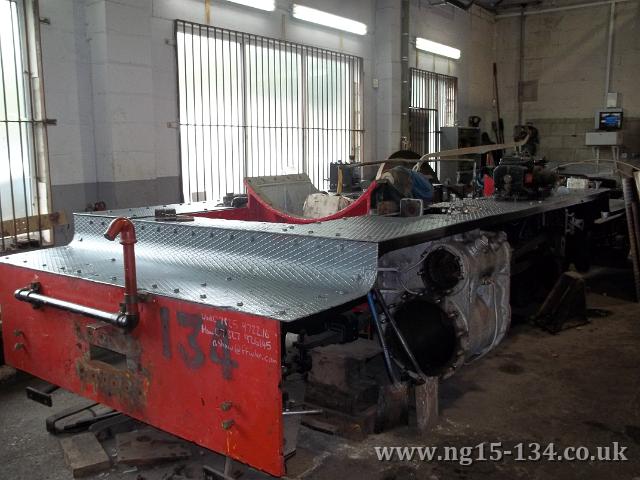

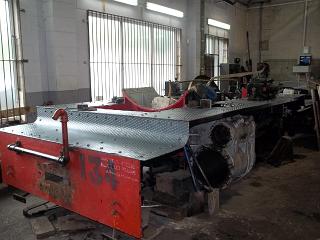

The first job when we arrived - clearing and cleaning the top of the loco.
Photo: Laurence Armstrong

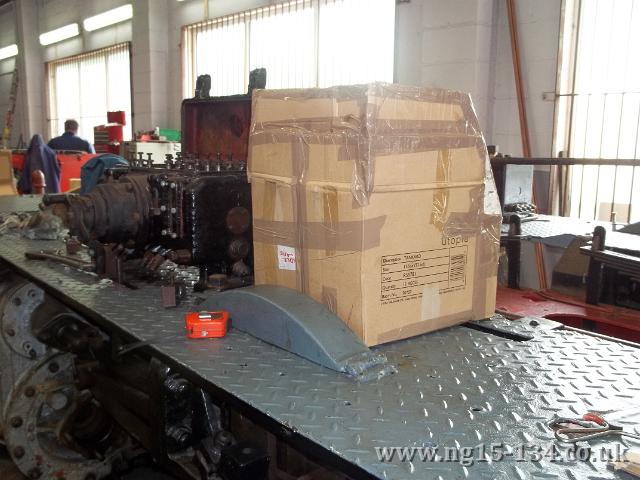

The first sandbox template made out of cardboard.
Photo: Laurence Armstrong

The first cardboard sandbox template viewed from the other side.
Photo: Laurence Armstrong

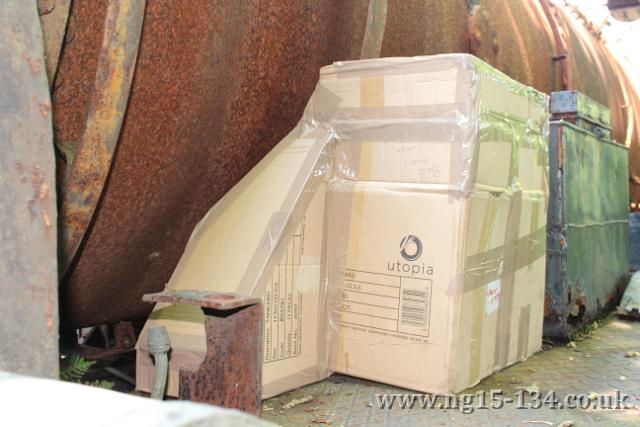

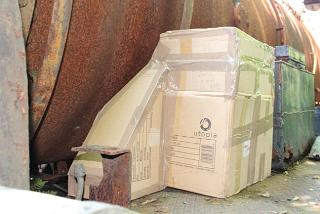

The cardboard sandbox template was then checked for clearances on 133. It also gave the opportunity to compare it against the original.
Photo: Laurence Armstrong

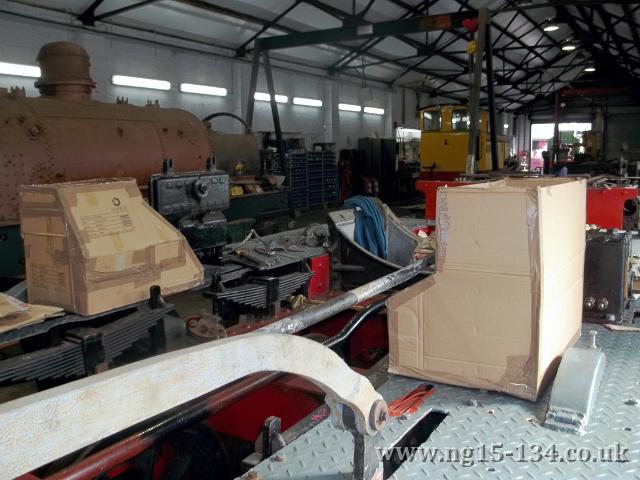

Two of the cardboard sandbox templates in place. These are the two for the forward direction.
Photo: Laurence Armstrong

Two of the cardboard sandbox templates in place. These are the two for the forward direction.
Photo: Laurence Armstrong

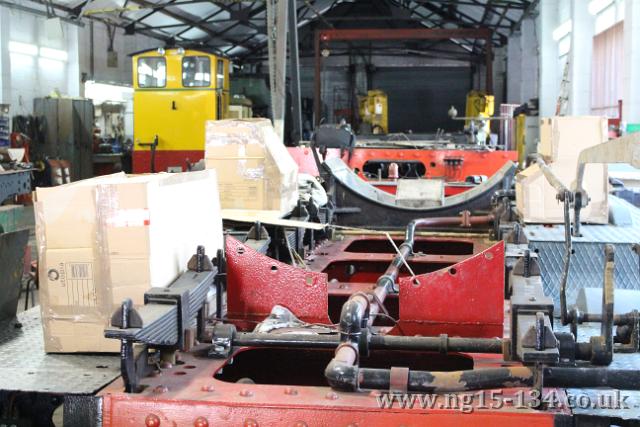

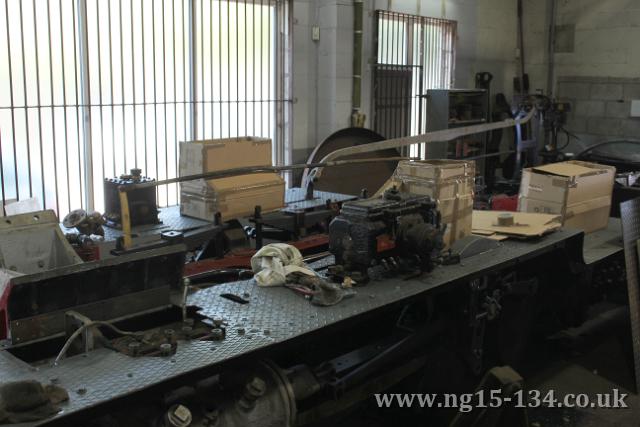

All three cardboard sandbox templates made and in place. The third box (on the right) will provide sand to both sides for the reverse direction
Photo: Laurence Armstrong

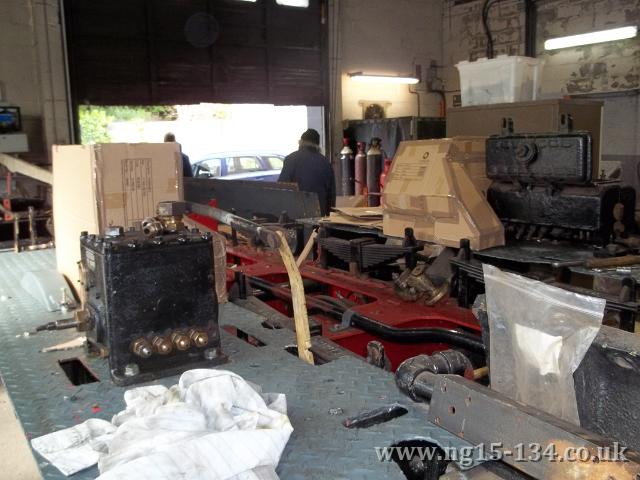

The three cardboard sandbox templates as viewer fro the rear.
Photo: Laurence Armstrong

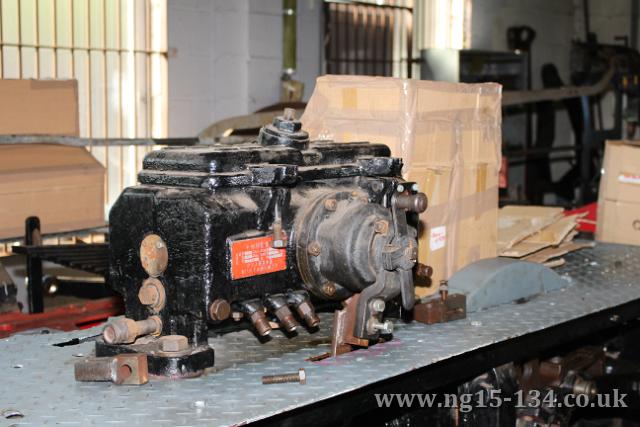

The 'Chinese' lubricator having had it's outlet valves checked and cleaned.
Photo: Laurence Armstrong

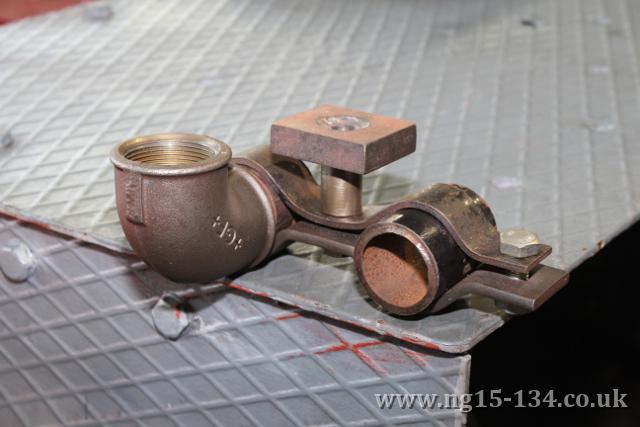

One of the newly manufactured tender vacuum pipe bracket.
Photo: Laurence Armstrong

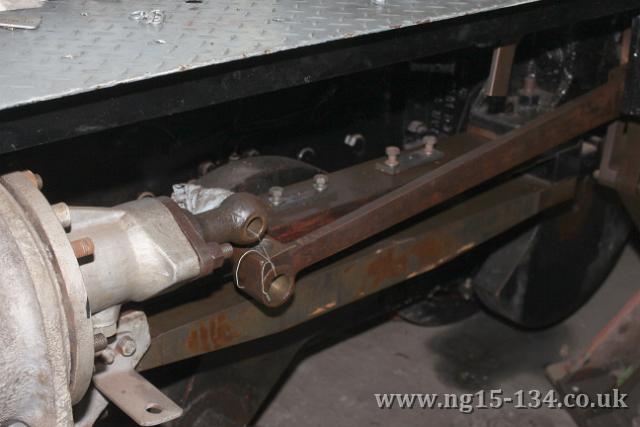

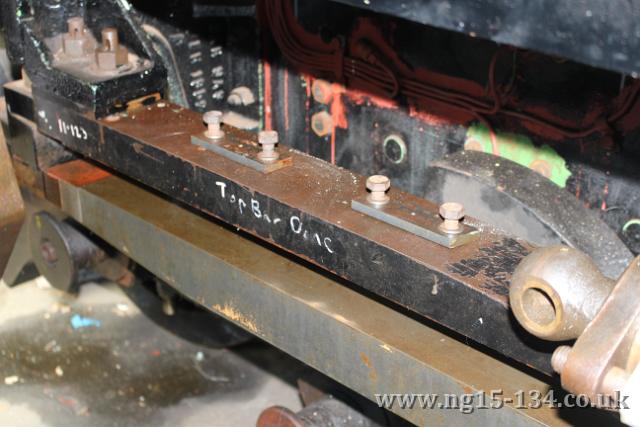

The mounting brackets that will form the oil input from the mechanical lubricator to the slide bars trial fitted in place on the left hand top slide bar.
Photo: Laurence Armstrong

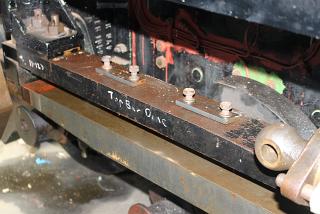

The mounting brackets that will form the oil input from the mechanical lubricator to the slide bars trial fitted in place on the right hand top slide bar.
Photo: Laurence Armstrong
