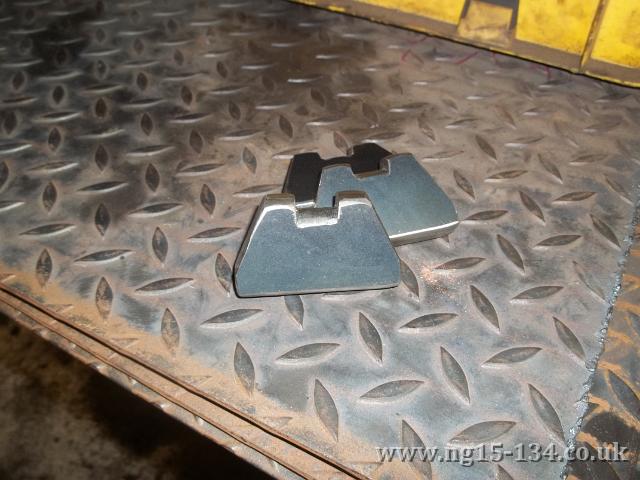

New Cotters are being made for the top of the spring hangers. These were laser cut and then hand ground to the correct profile for the hanger. They will now be hardened ready for use.
Photo: Laurence Armstrong

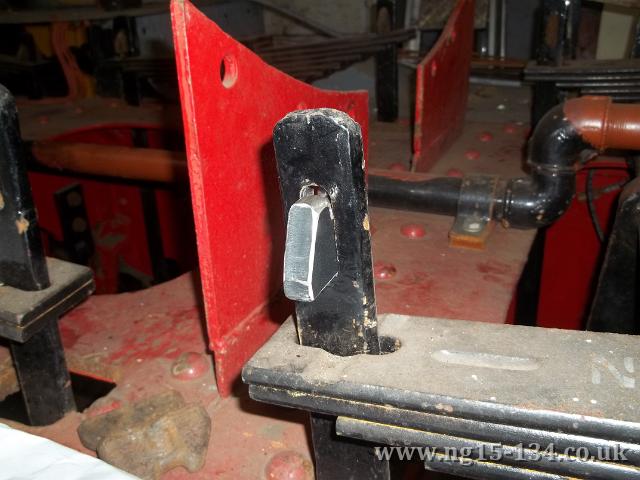

A view of a new Cotter in its spring hanger.
Photo: Laurence Armstrong

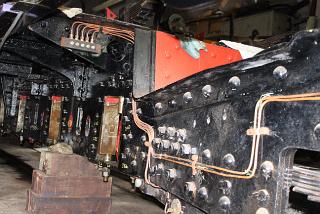

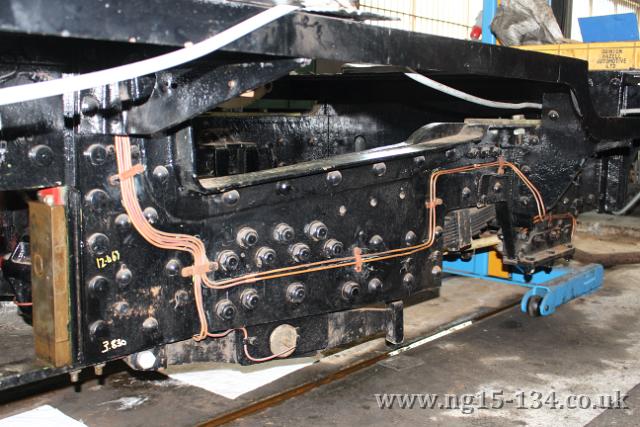

The pipework having been installed for the various grease lubrication points for the rear pony truck. The brass fittings remain to be silver soldered to the ends.
Photo: Laurence Armstrong

The pipework having been installed for the various grease lubrication points for the rear pony truck. The brass fittings remain to be silver soldered to the ends.
Photo: Laurence Armstrong

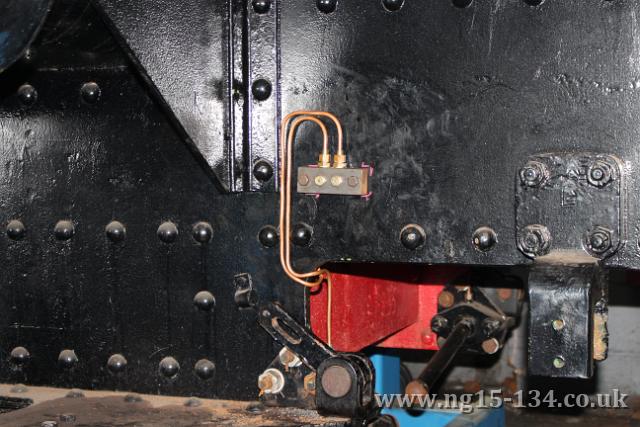

The front pony truck just has two grease points and the pipework for these was aso finished, although again silver soldering remains to be done.
Photo: Laurence Armstrong

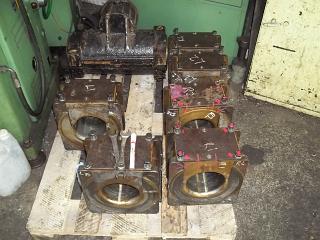

The driving wheel axle boxes are having missing bolts fitted to attach the securing plates to the oil wells. Also the fixing bolts are being drilled to take the securing wires to prevent the assembly coming loose in service.
Photo: Laurence Armstrong

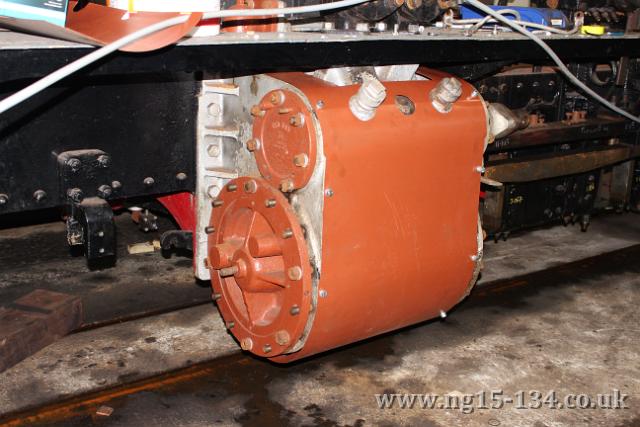

The LHS cylinder cover was drilled to take the securing bolts.
Photo: Laurence Armstrong
