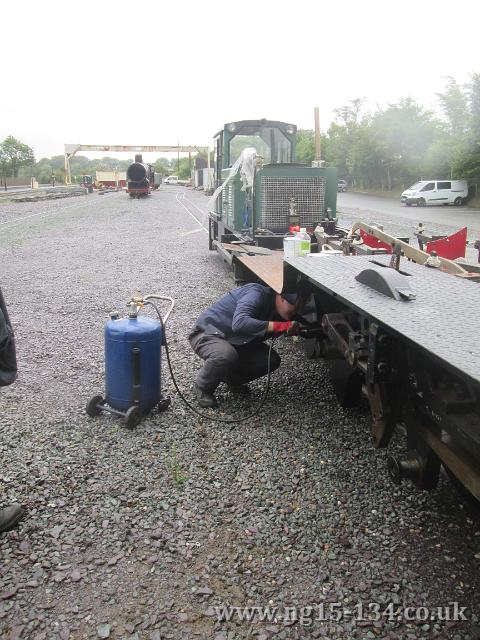

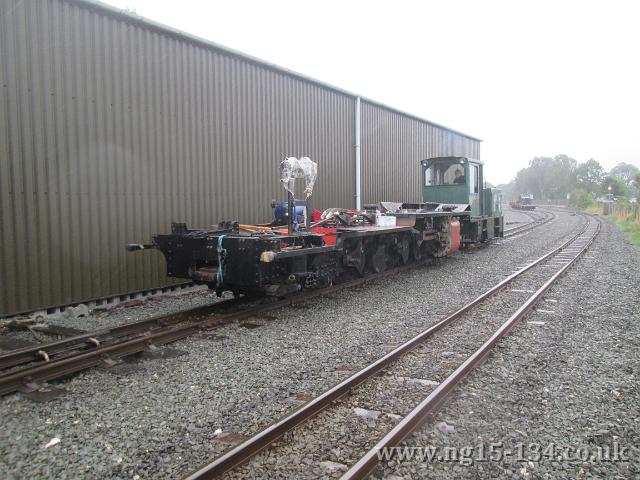

The loco frames on the move. After the tender was pulled out of the goods shed and put in the siding (behind the boiler on the left) the frames were pulled and all bearings given a good oil.
Photo: Martin Coombs.

Ar part of the exercise we also looked at a possible drain-cock diffuser arrangement. an empty can of Pringles came in very useful to examing the space available!
Photo: Martin Coombs.

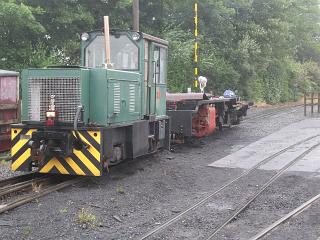

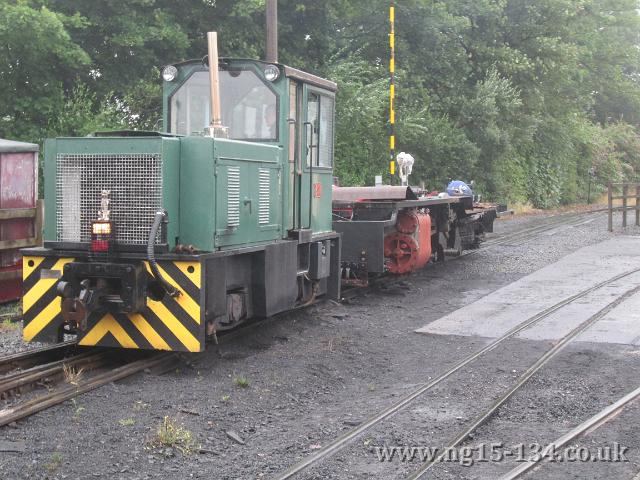

The loco frames on the move just about to exit the north yard.
Photo: Martin Coombs.

Almost there.... the loco frames entering the south yard for the loco shed.
Photo: Martin Coombs.

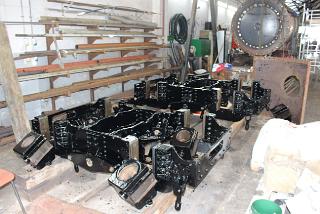

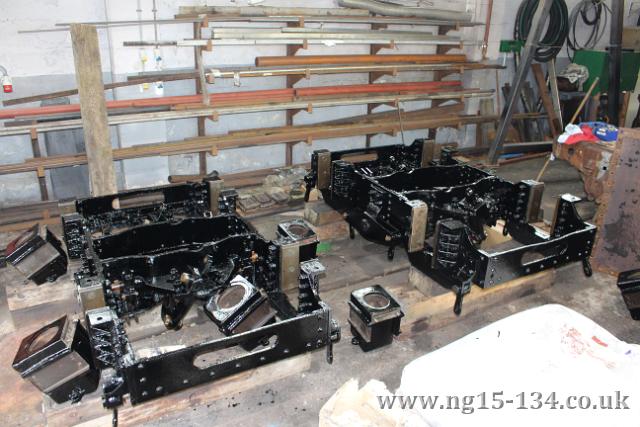

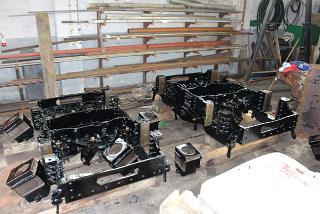

More painting..... this time the tender bogies and axleboxes have received their final coat, a coat of black gloss.
Photo: Laurence Armstrong.

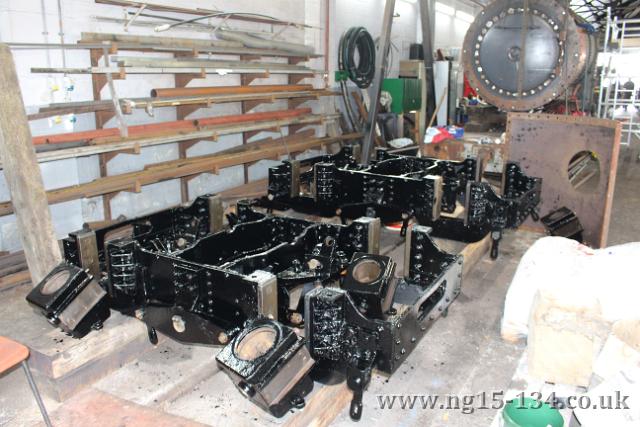

Another view of the tender bogies and axleboxes resplendant in their black gloss.
Photo: Laurence Armstrong.

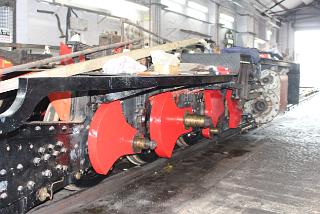

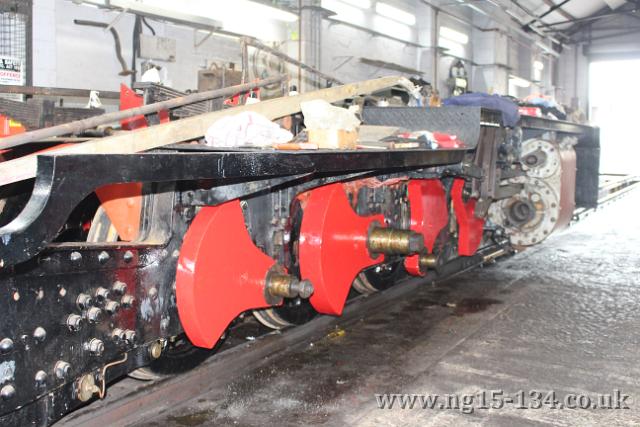

Over the weekend we also took the opportunity to paint the fly cranks in red.
Photo: Laurence Armstrong.

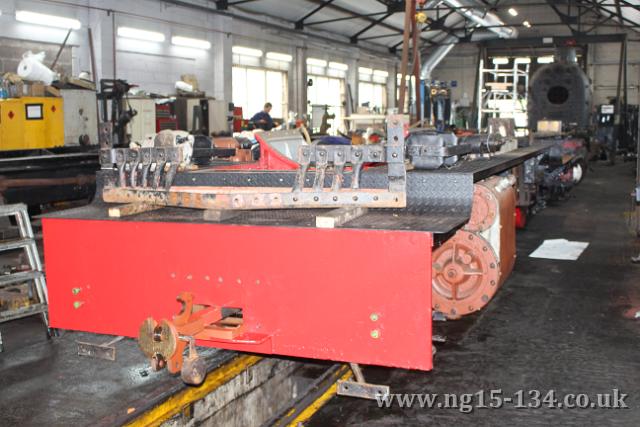

.....And to repaint the buffer beam in red.
Photo: Laurence Armstrong.

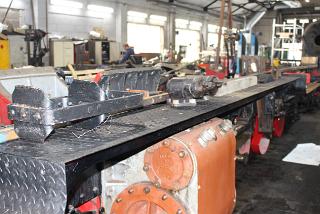

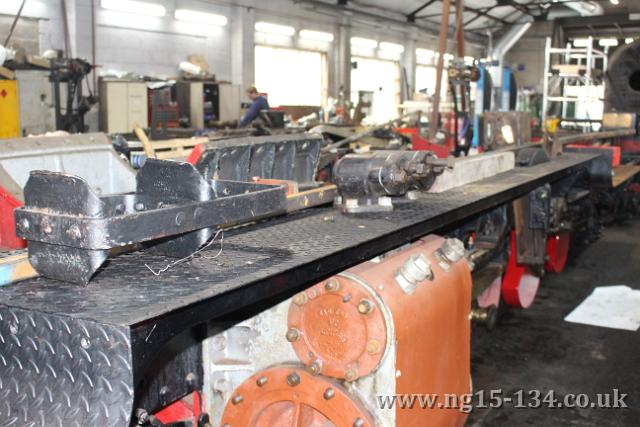

We started to look at what was needed to refit the front steps. This view also shows off the nice lines of the new running plate.
Photo: Laurence Armstrong.

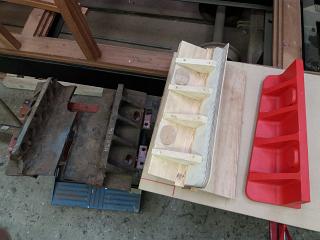

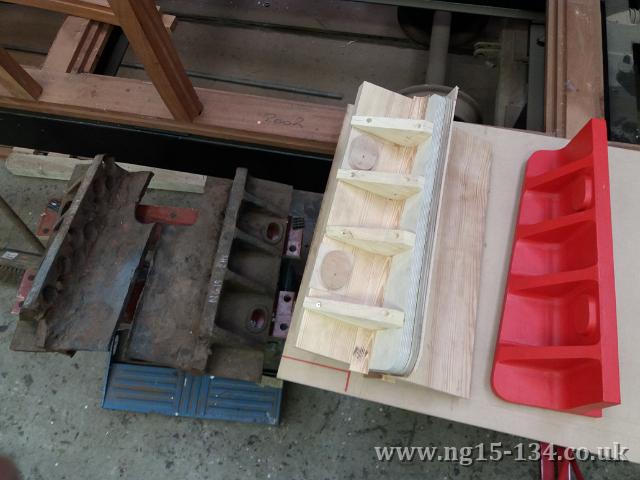

At Boston Lodge patterns are being made to cast new rear boiler support brackets. The originals are on the left and were badly wasted, together with the platework in that area. This is the area where the foundation ring was also wasted and from where it is thought the boiler was leaking into the fire that resulted in the withdrawal of the loco.
Photo: Adrian Strachan.

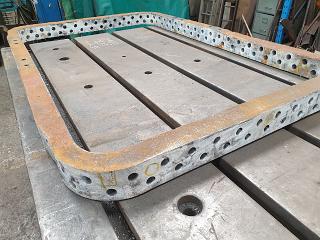

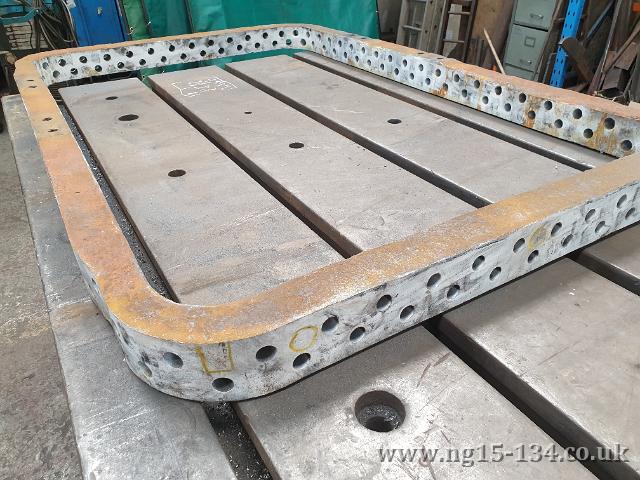

And talking of the foundation ring, this is it after being repaired at Locomotive Maintenance Services in Loughborough.
Photo: David Wright.

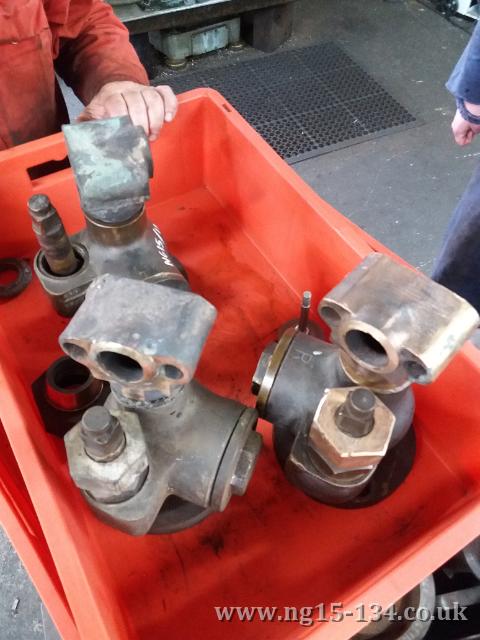

Three blowdown valves have been refurbished for us by Andy Bird at Dinas. We'll only need two so the other will be a usefull spare.
Photo: Adrian Strachan.
