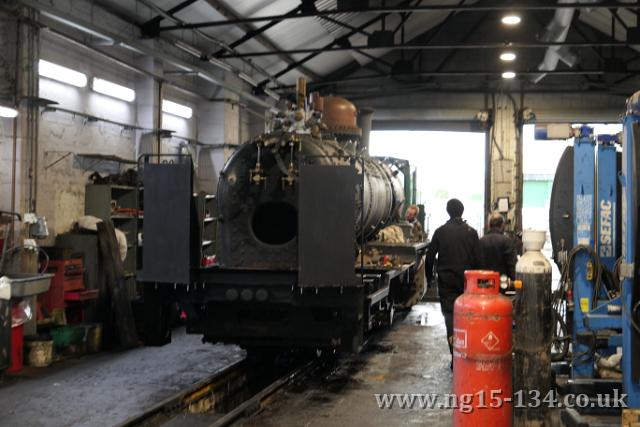

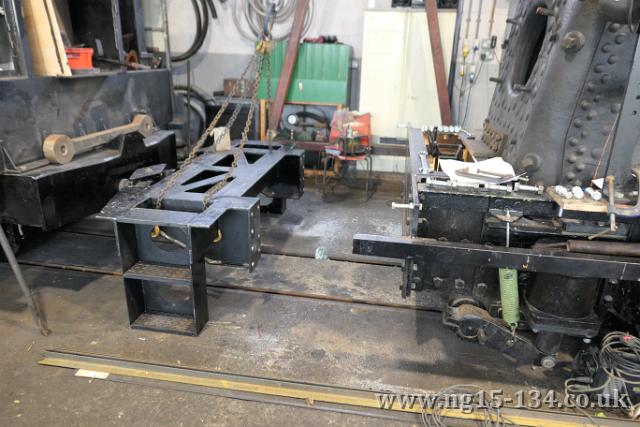

One job for the weekend was to remove the footplate frame extension so as we could drill the holes required to fit the remaining securing bolts. We also took the opportunity to tackle a few other minor jobs on the extension fabrication at the same time.
Photo: Laurence Armstrong

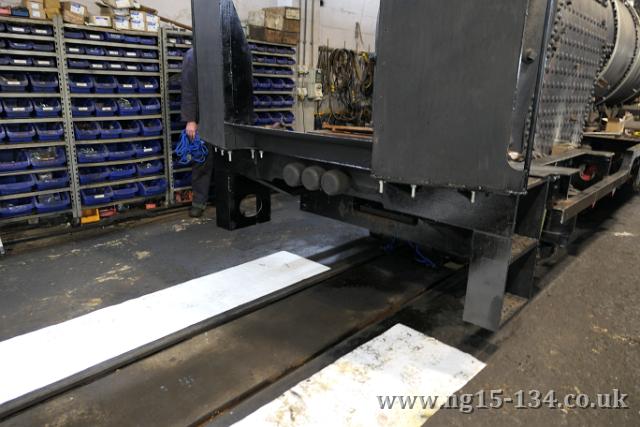

One of those minor jobs was the fitting of the rubber buffers to the frame extension fabrication.
Photo: Laurence Armstrong

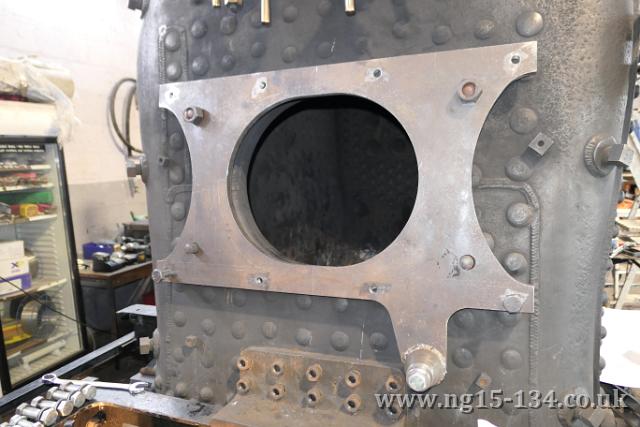

We also started fitting the firehole door surround.
Photo: Laurence Armstrong

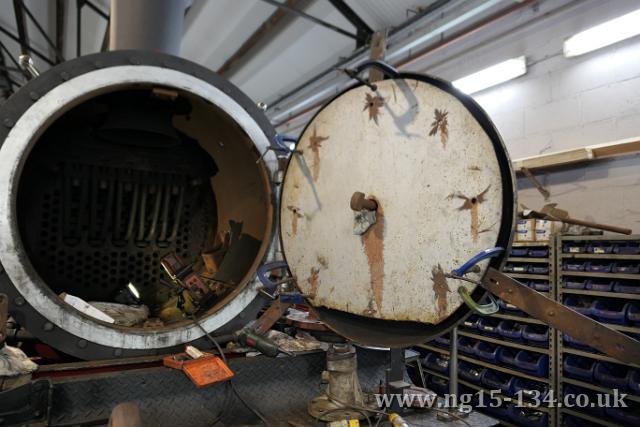

Work continued in fitting the remaining smokebox securing bolts to the boiler and getting the smokebox door baffle plate ready for welding into place.
Photo: Laurence Armstrong

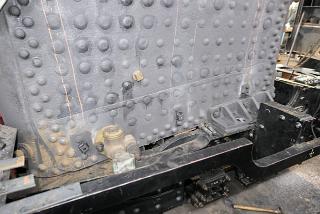

We were missing some of the firebox crinoline securing studs so these were welded into place as can be seen by the three across the bottom.
Photo: Laurence Armstrong

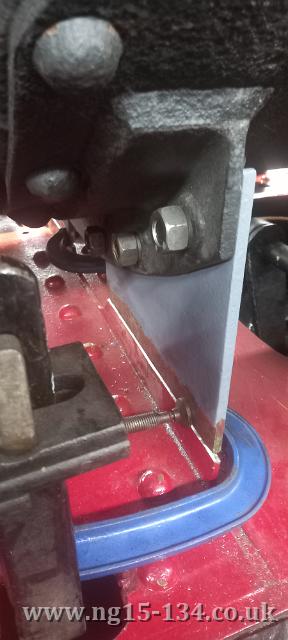

We continued with replacing the boiler's Diaphragm Plate as this needed fitted bolts adding. This is ready to be welded into place at the next working party.
Photo: Erle Ford

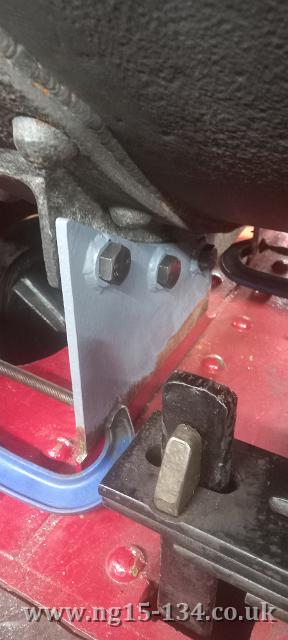

We continued with replacing the boiler's Diaphragm Plate as this needed fitted bolts adding. This is ready to be welded into place at the next working party.
Photo: Erle Ford

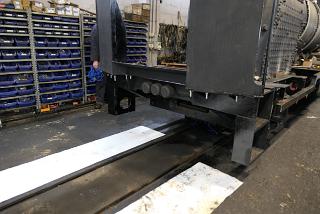

The loco was moved over the pit so as we could continue fitting the brake blocks and associated rigging.
Photo: Laurence Armstrong

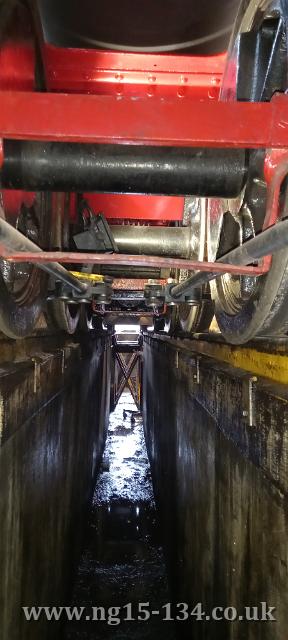

A view of the underside of the loco with the rigging trial fitted. Once we're happy the pins etc will be fitted the correct way round and secured in place.
Photo: Erle Ford

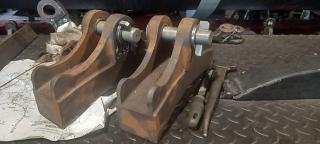

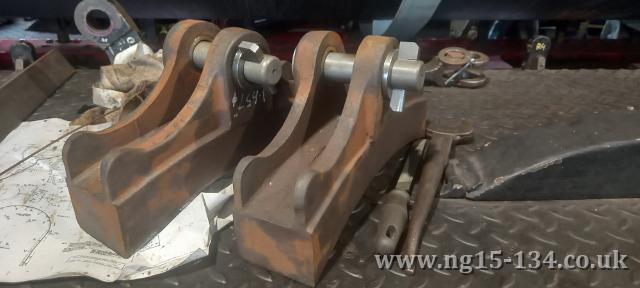

Brake blocks at the ready.
Photo: Erle Ford

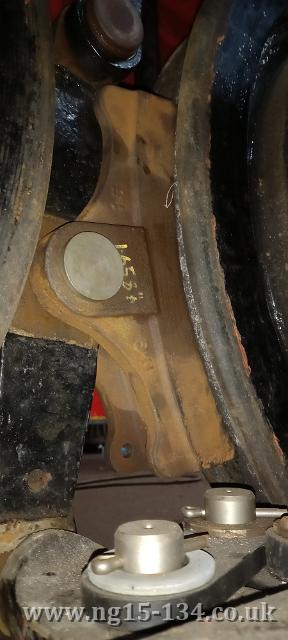

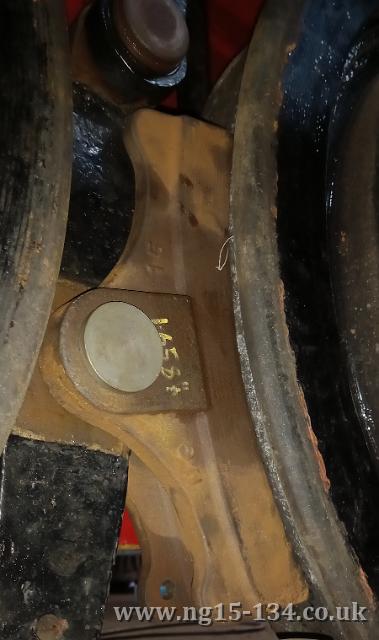

A brake hanger ready to take a brake block.
Photo: Erle Ford

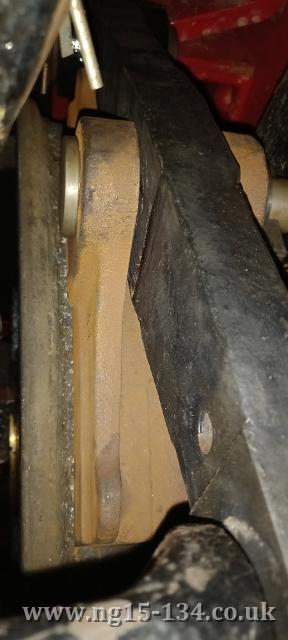

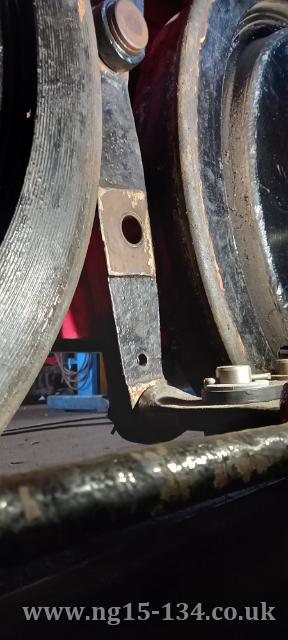

Brake block fitted in place.
Photo: Erle Ford
