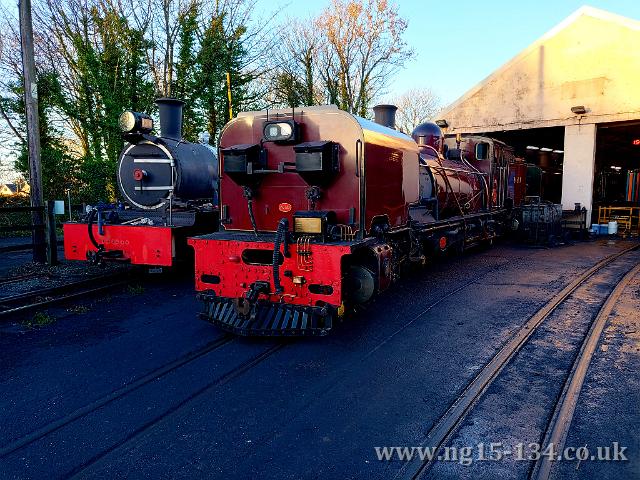

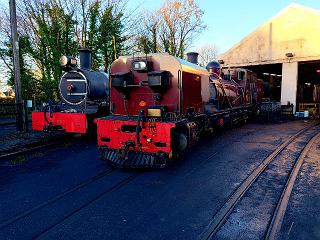

The week started with a mega shunt to get everything where we wanted.
Photo: Andrew Cole

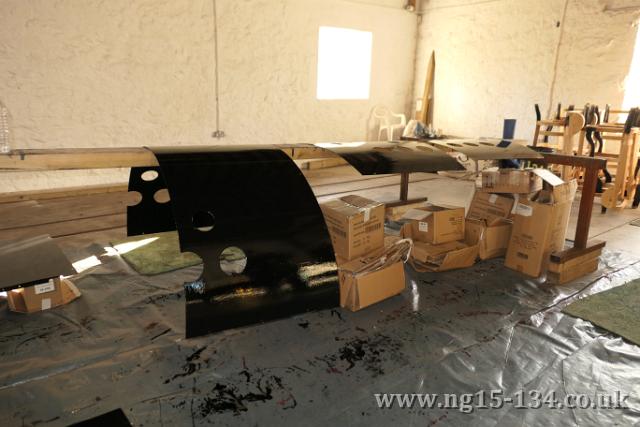

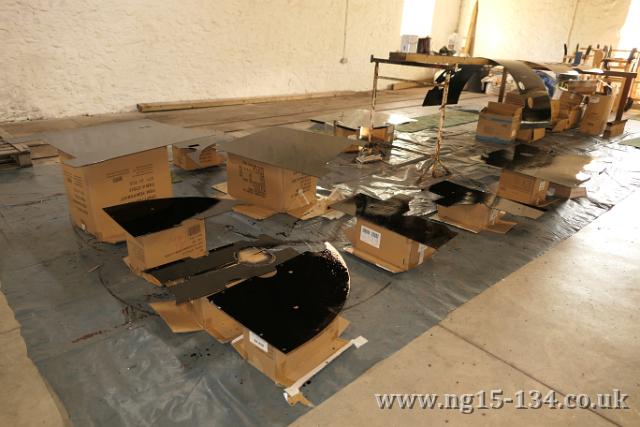

In the goods shed, which has become our paint shop, the firebox cladding is being painted.
Photo: Laurence Armstrong

In the goods shed, which has become our paint shop, the firebox cladding is being painted.
Photo: Laurence Armstrong

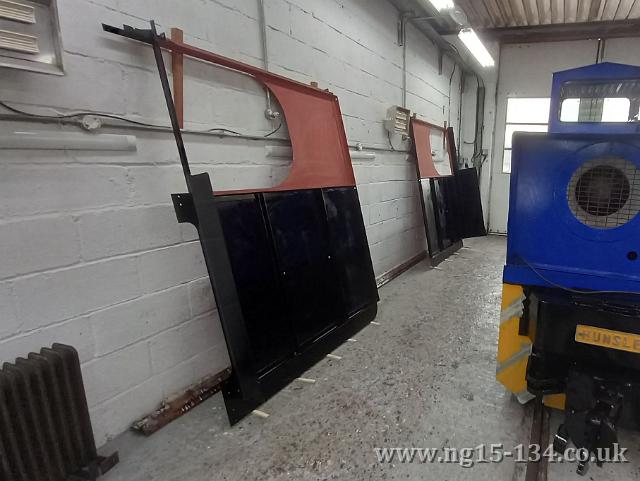

The cabsides being painted at Boston Lodge in late December 2023.
Photo: Erle Ford

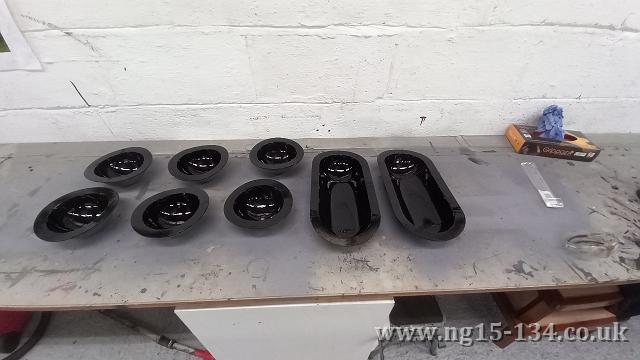

Some of the smaller components (the covers for the stay bolts) at Boston Lodge in late December 2023.
Photo: Erle Ford

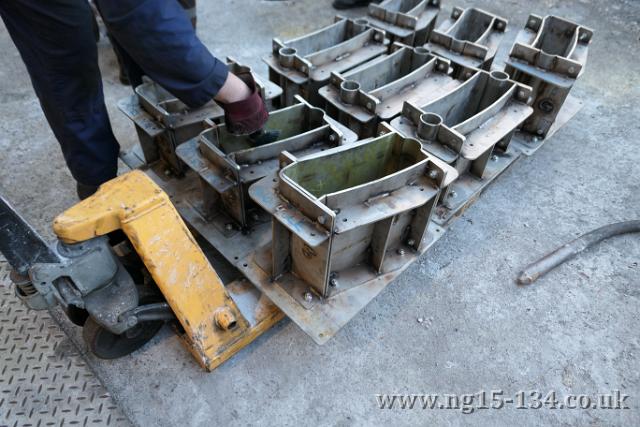

A momentous sign of recent progress, we casted our brick arch. Here the release agent in being applied.
Photo: Laurence Armstrong

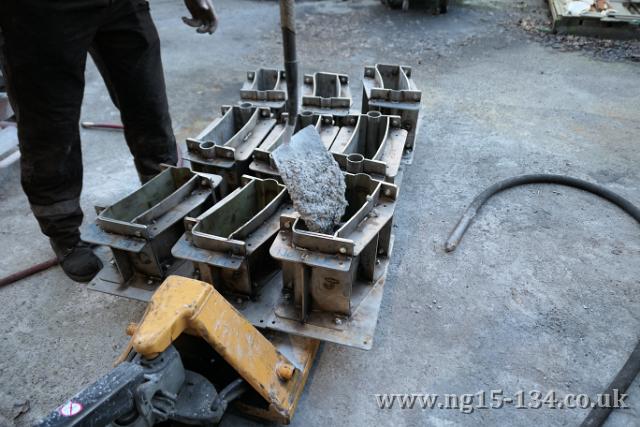

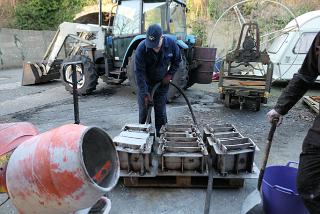

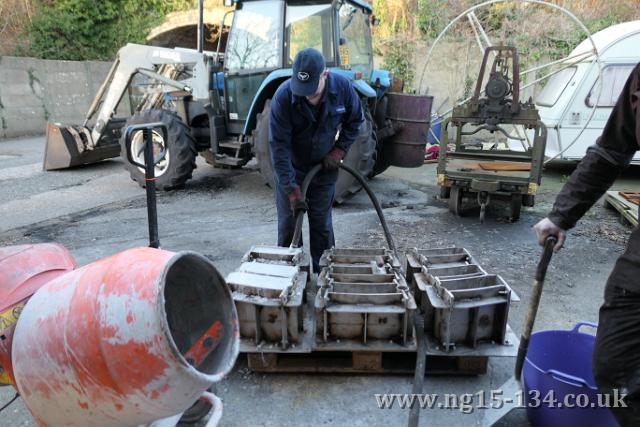

In goes the first shovel full.
Photo: Laurence Armstrong

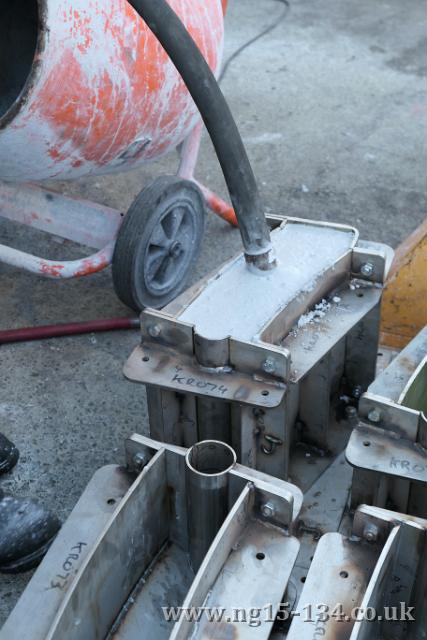

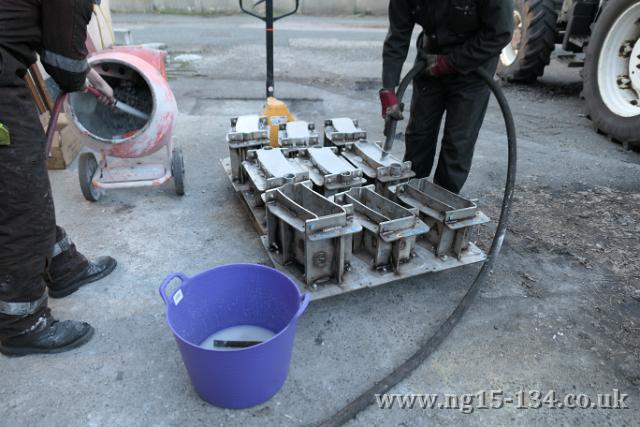

The vibrator is used to remove all the air bubbles.
Photo: Laurence Armstrong

Third brick now filled.
Photo: Laurence Armstrong

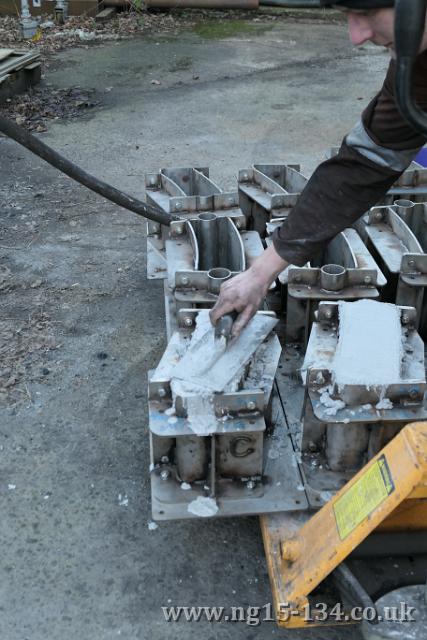

The finishing smoothing off.
Photo: Laurence Armstrong

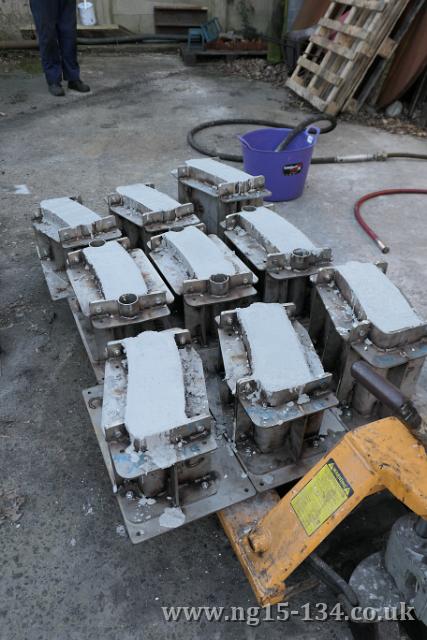

Number 6 done....
Photo: Laurence Armstrong

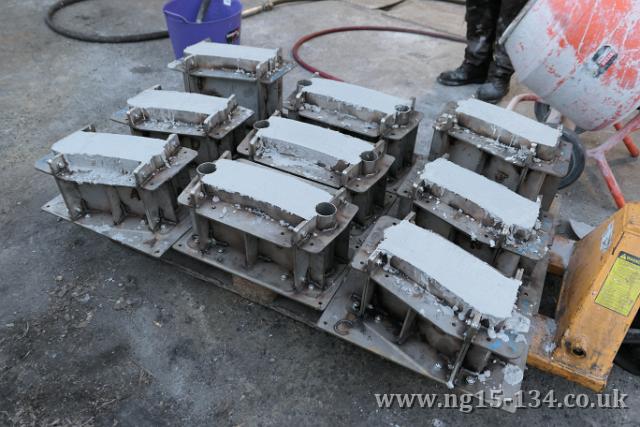

All completed.
Photo: Laurence Armstrong

These will now be left for a few days before being removed from the moulds.
Photo: Laurence Armstrong

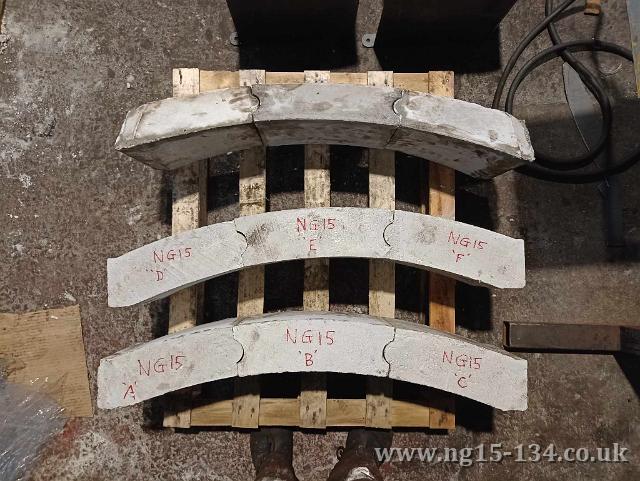

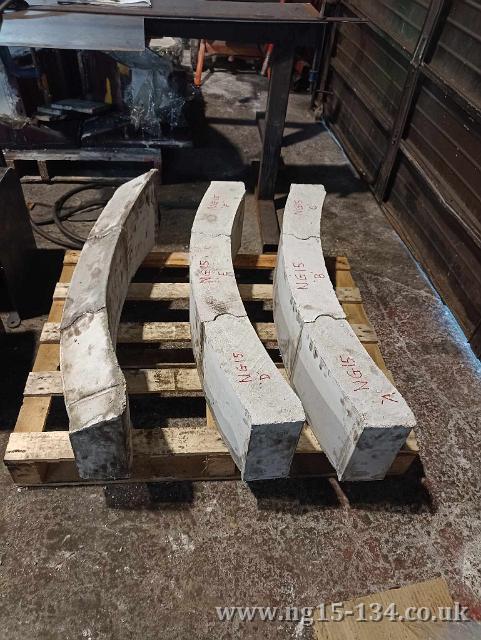

A few day's later the bricks were removed from their moulds.
Photo: Andrew Cole

These will now be put in the dryer to remove all traces of moisture.
Photo: Andrew Cole

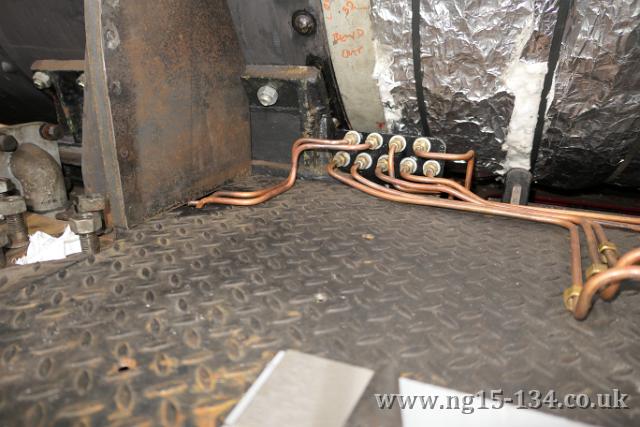

The final bit's of pipework on the fireman's side lubricator for the Krauss Helmholtz pony truck and steam oil feeds to that side.
Photo: Laurence Armstrong

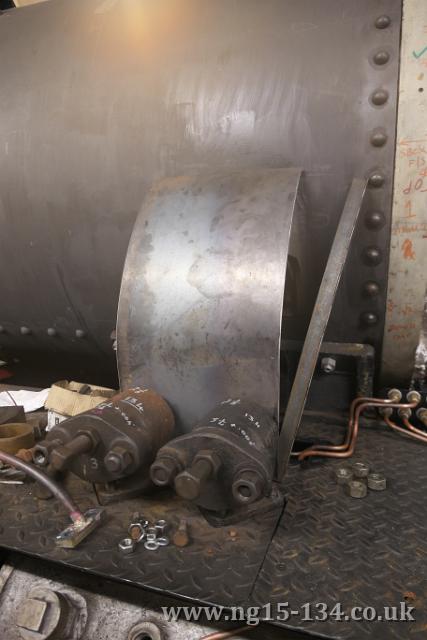

The covers for the steam pipes to the cylinders was being made.
Photo: Laurence Armstrong

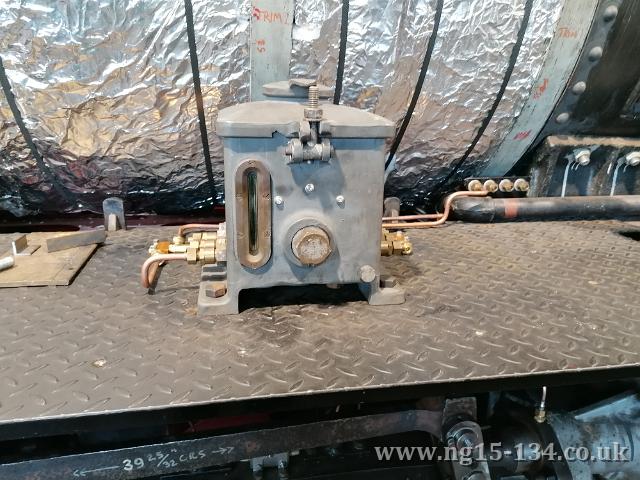

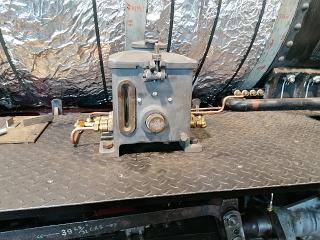

Yet more pipework... this time the attention is being paid to the steam oil lubricator on the driver's side. Some feeds cross over the loco to the LHS cylinder tith the rest to those on the RHS.
Photo: Laurence Armstrong

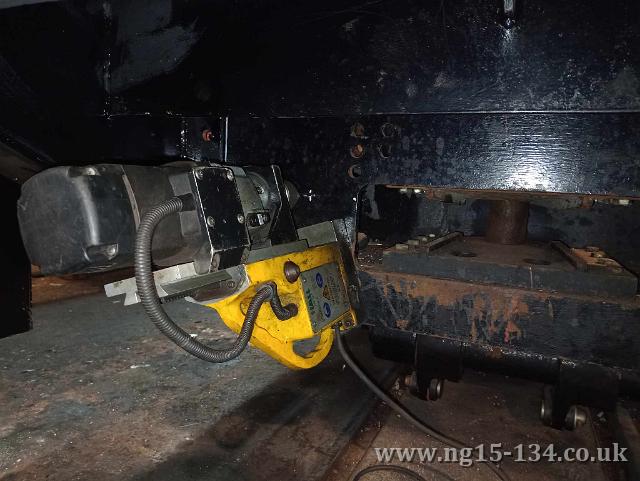

One of the smaller jobs done was the drilling of two holes in the tender's front drag-box to take the eyelets for the loco to tender safety chains.
Photo: Andrew Cole

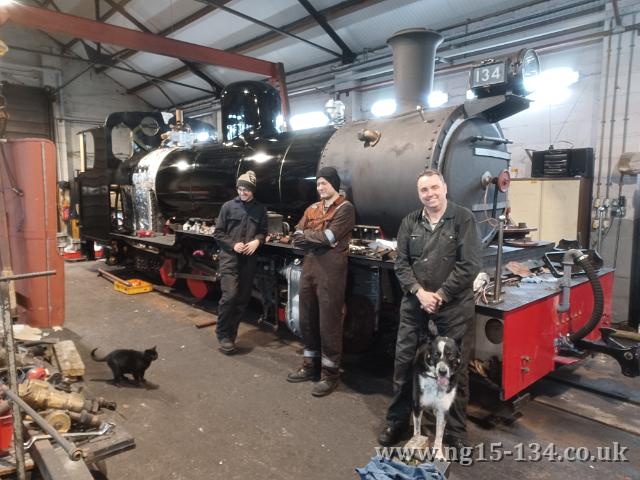

We have painted cladding, and dome...... with some of the team including Badger, the team mascot and the Dinas 'Ship's Cat'
Photo: Adrian Strachan

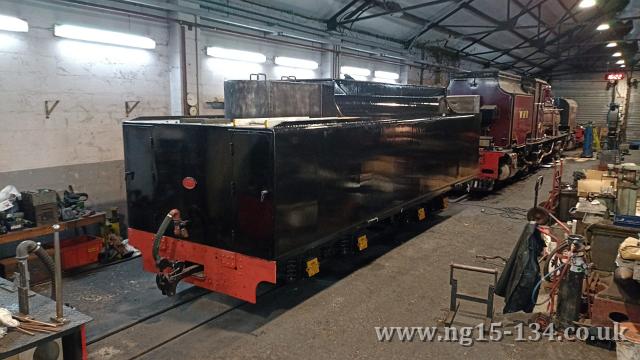

The tender after a coat of gloss paint.
Photo: Adrian Strachan

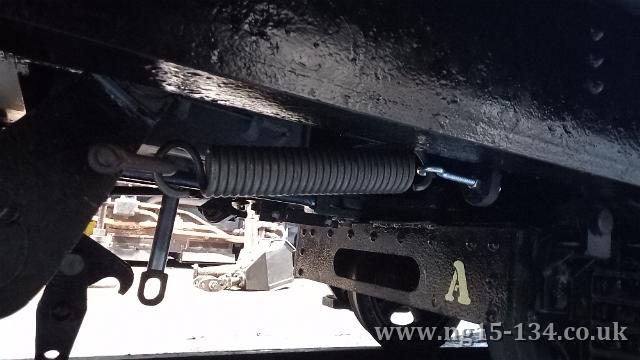

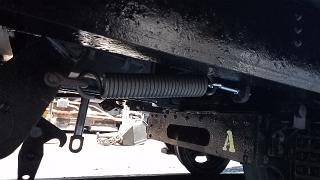

The return spring fitted to the loco's brake rigging.
Photo: Erle Ford

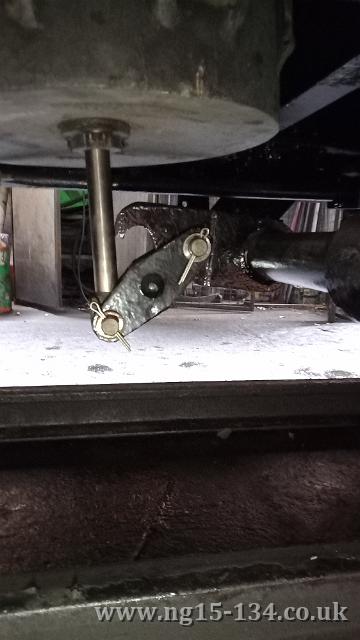

On the tender, the vacuum cylinder is now hooked up to the brake linkage.
Photo: Erle Ford

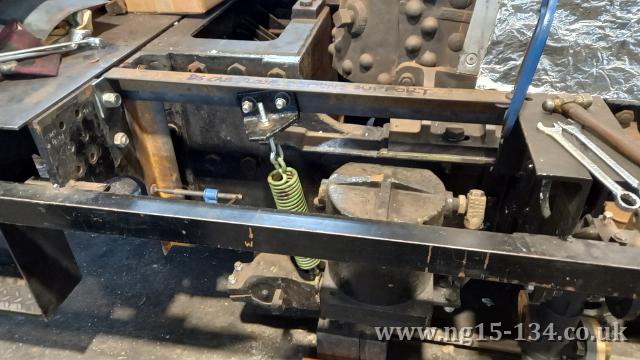

Also on the tender the return spring is attached, although after a trial operation of the whole mechanism, that did operate as required, some adjustment will be required.
Photo: Erle Ford

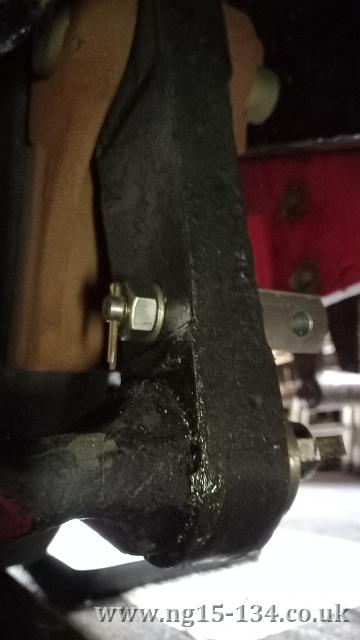

The Brake Block Adjuster Guide Blocks finished their machining and trial fitted to the Brake Hangers. Their first coat of paint has now been applied
Photo: Erle Ford
