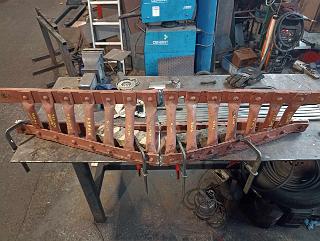

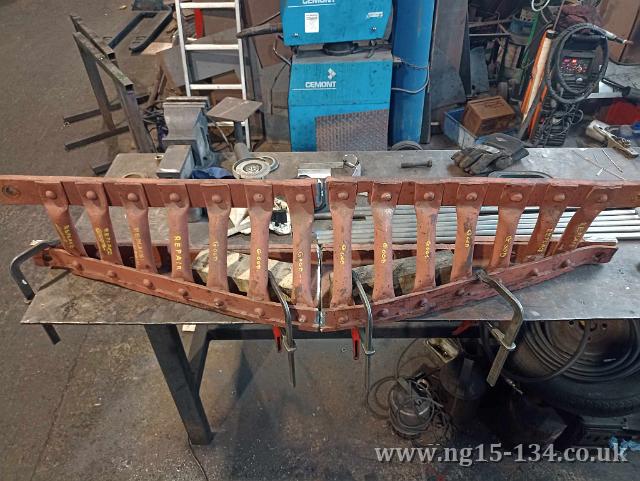

Modification being made to the rear cow-catcher for the tender.
Photo: Andrew Cole

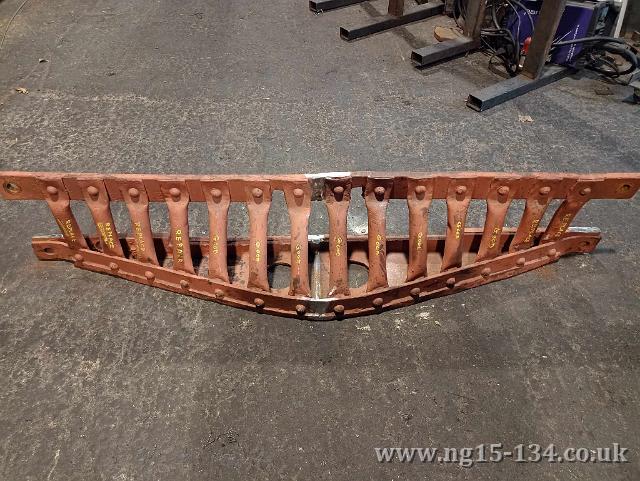

The rear cow-catcher modification after welding.
Photo: Andrew Cole

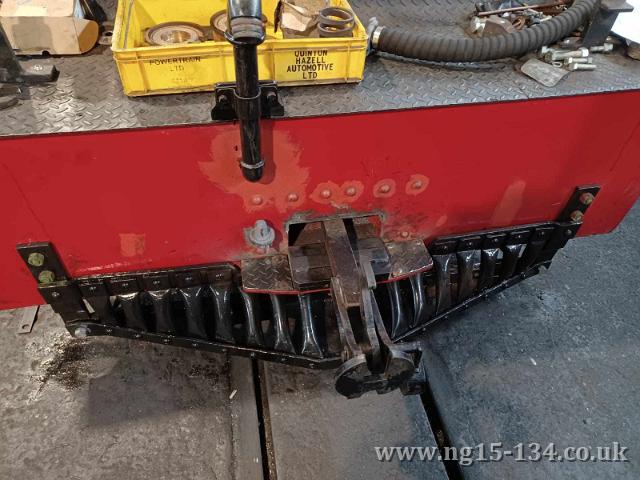

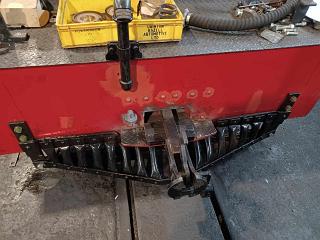

For the front cow-catcher, chequer plate steps have been added to the front coupling support.
Photo: Andrew Cole

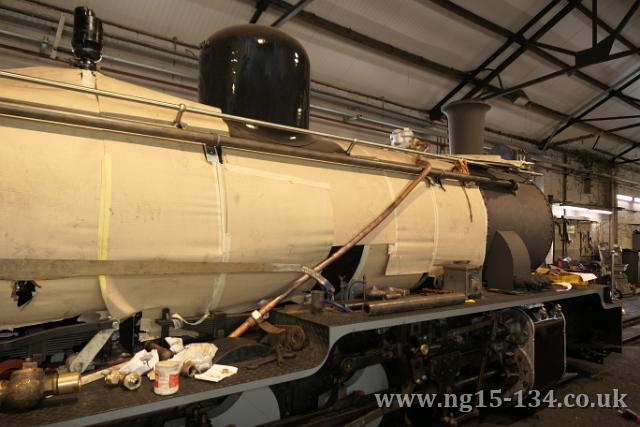

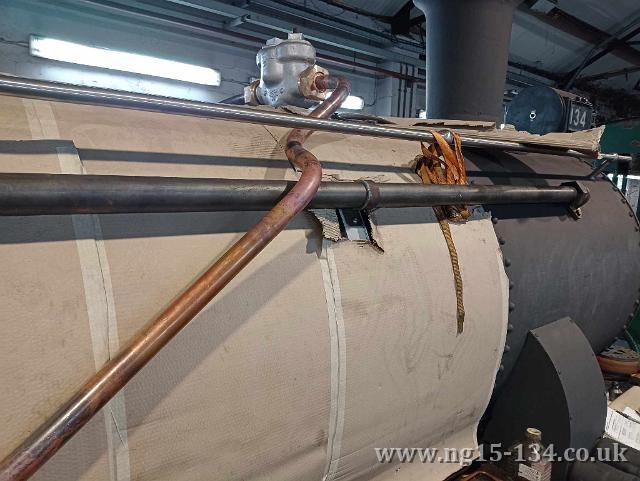

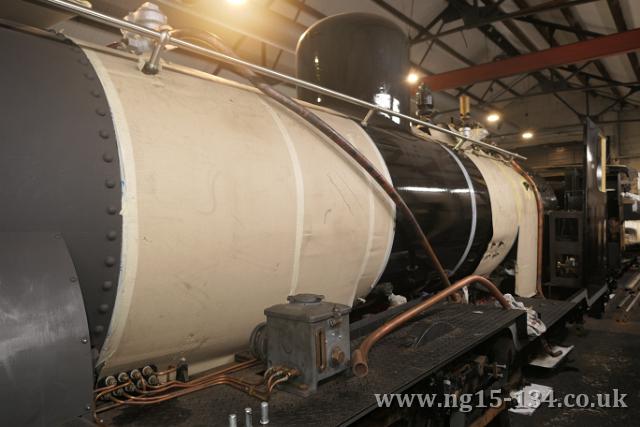

A view of the large bore copper pipe to the boiler's water feed clack.
Photo: Andrew Cole

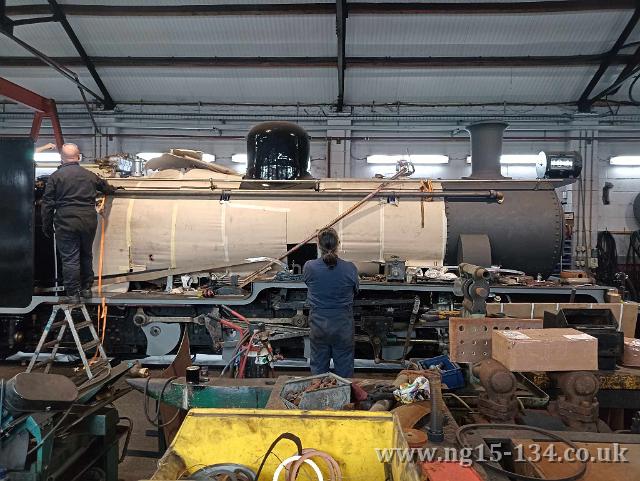

Admiring their handiwork!
Photo: Andrew Cole

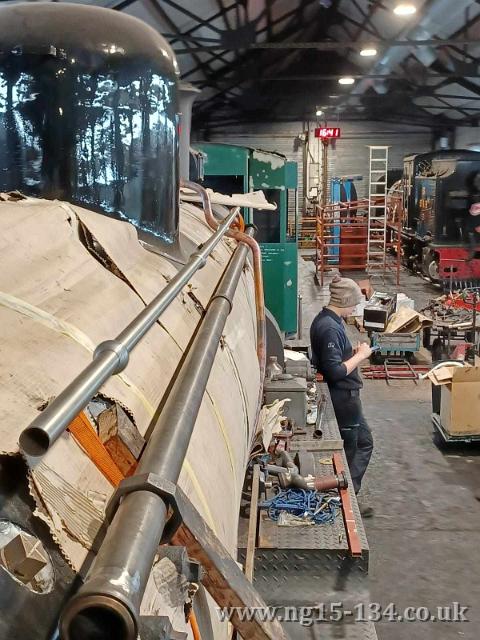

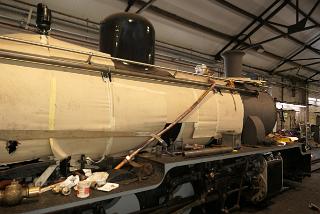

Another view of the large bore copper pipe to the boiler's water feed clack.
Photo: Laurence Armstrong

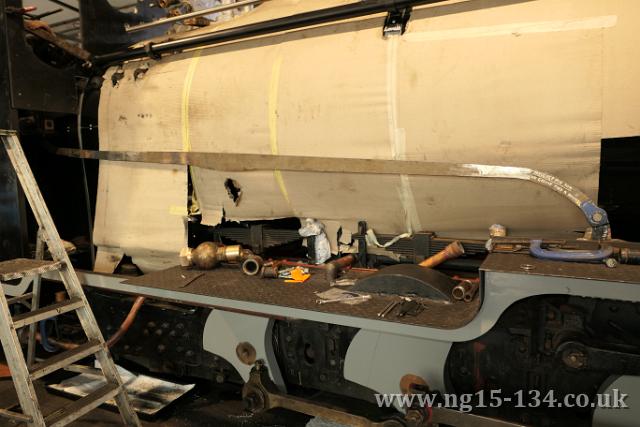

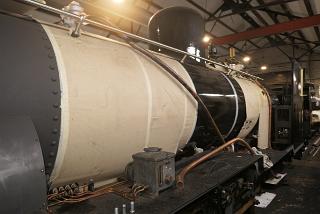

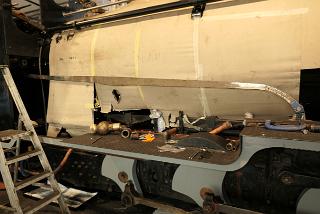

And a view of the pipework on the fireman's side, together with sections of 'work in progress'.
Photo: Laurence Armstrong

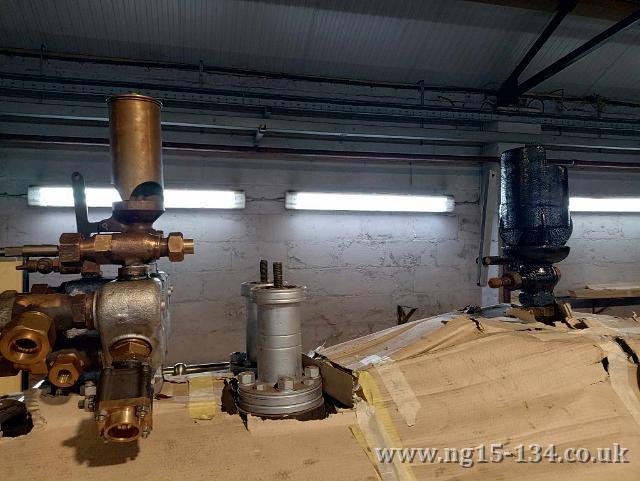

Both whistles have been refitted.
Photo: Andrew Cole

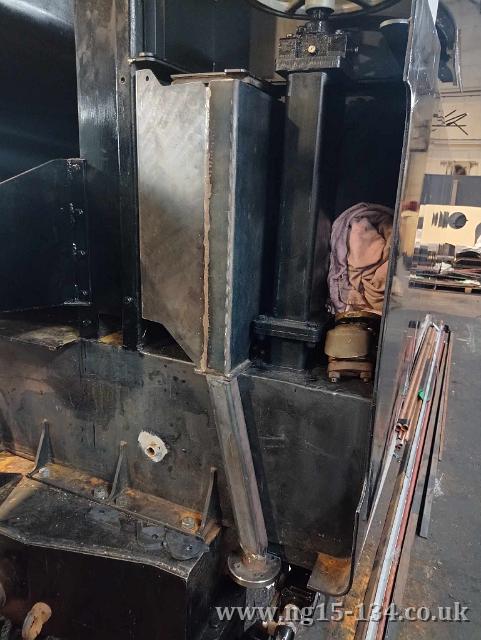

One of the rear sandboxes in the tender. This will be piped across to the loco.
Photo: Andrew Cole

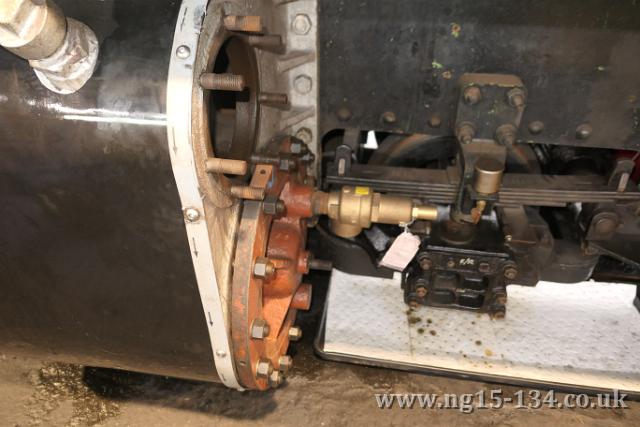

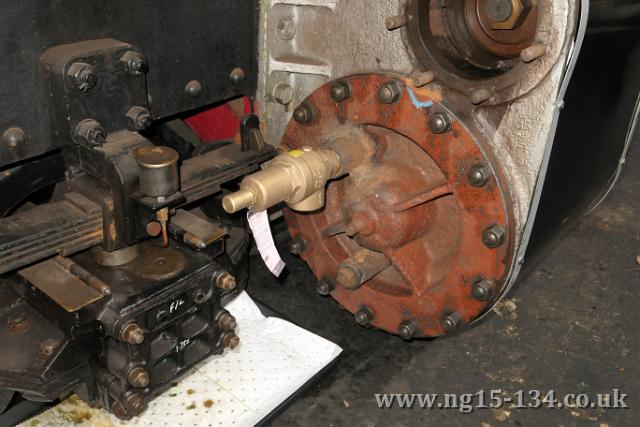

Cylinder relief valves have been fitted on both sides.
Photo: Laurence Armstrong

Cylinder relief valves have been fitted on both sides.
Photo: Laurence Armstrong

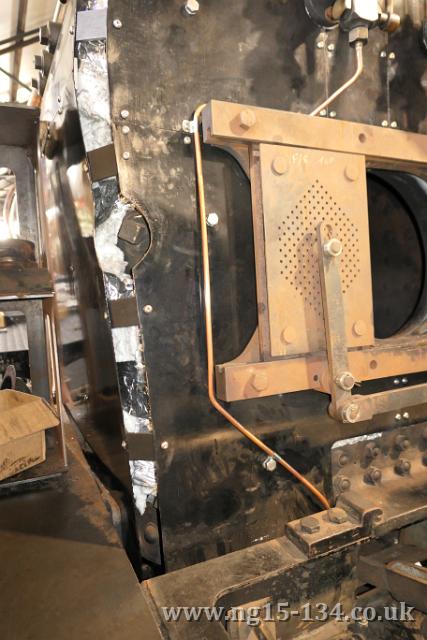

Pipe clips have now been fitted to support the gauge glass drains.
Photo: Laurence Armstrong

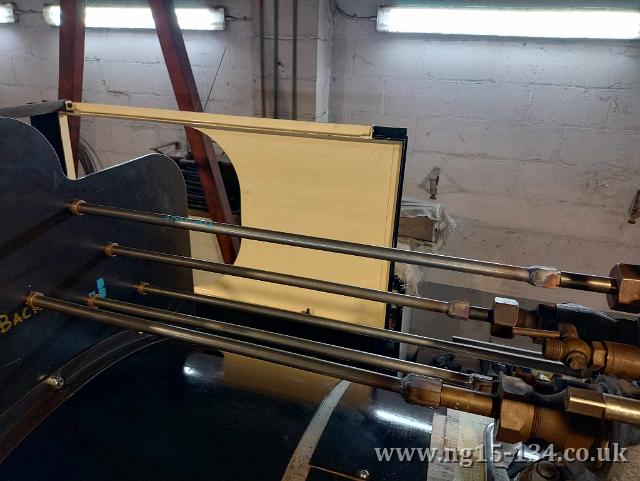

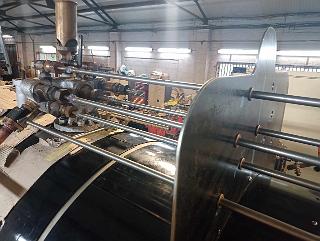

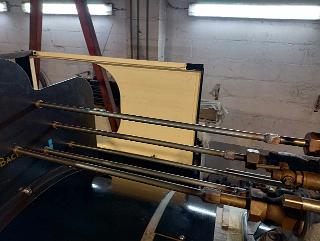

The new spindle plate with some of its spindles trial fitted.
Photo: Andrew Cole

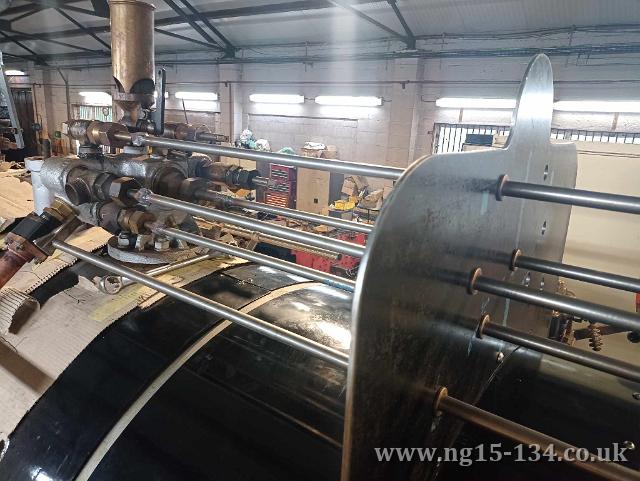

The new spindle plate with some of its spindles trial fitted.
Photo: Andrew Cole

New wooden backings have been made for the cab gauges.
Photo: Laurence Armstrong

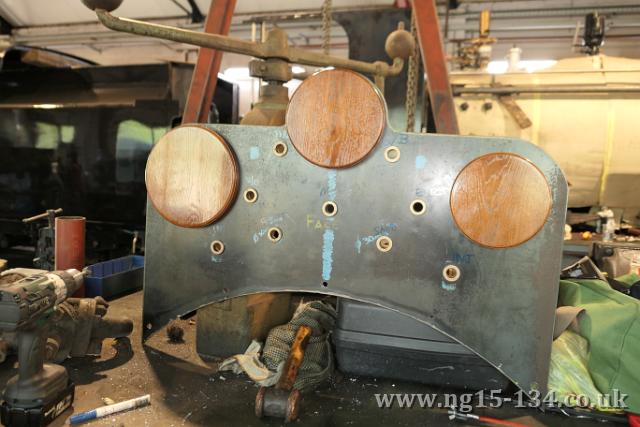

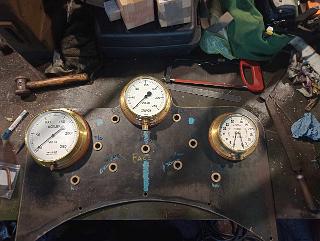

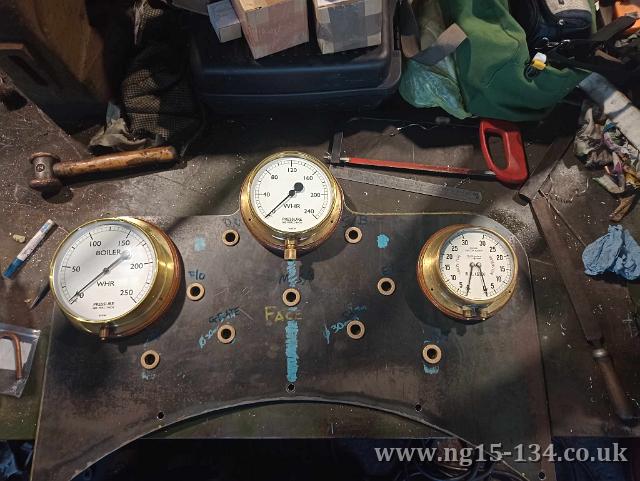

The spindle plate with the backings and gauges trial fitted.
Photo: Andrew Cole

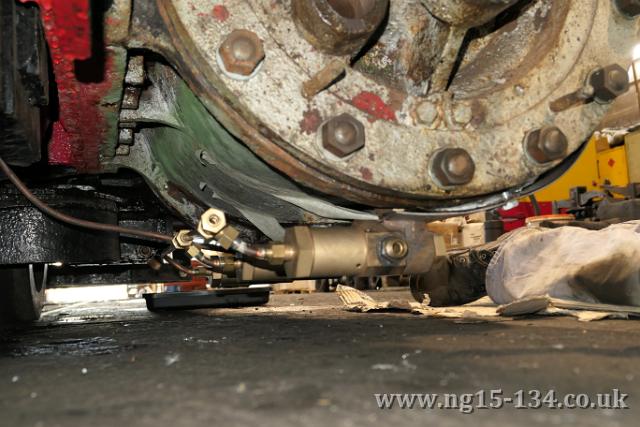

The three RHS cylinder drain cocks with the interconnected steam feed pipes.
Photo: Laurence Armstrong

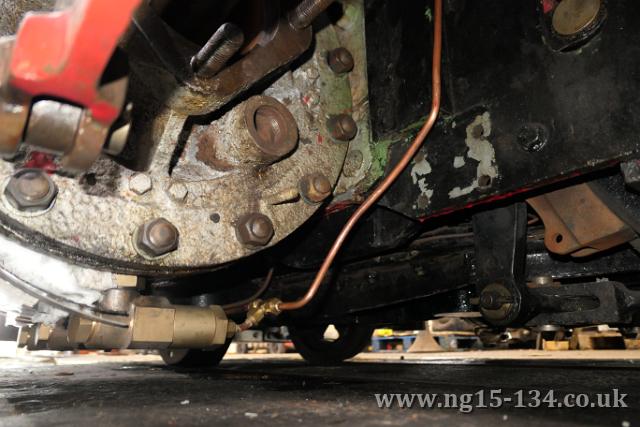

The three LHS cylinder drain cocks with the interconnected steam feed pipes and the connection starting to make its way back to the cab.
Photo: Laurence Armstrong

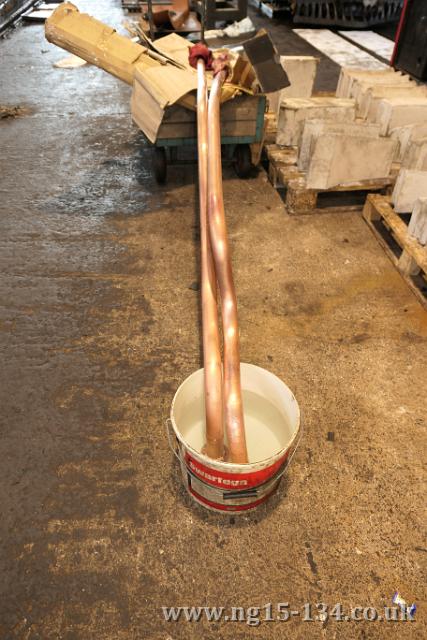

The water feed pipes were removed for cleaning. Here they're left in a bath of citric acid to remove the flux.
Photo: Laurence Armstrong

The reach rod has been trial fitted again to check the length is correct with the fitted reverser in the cab.
Photo: Laurence Armstrong

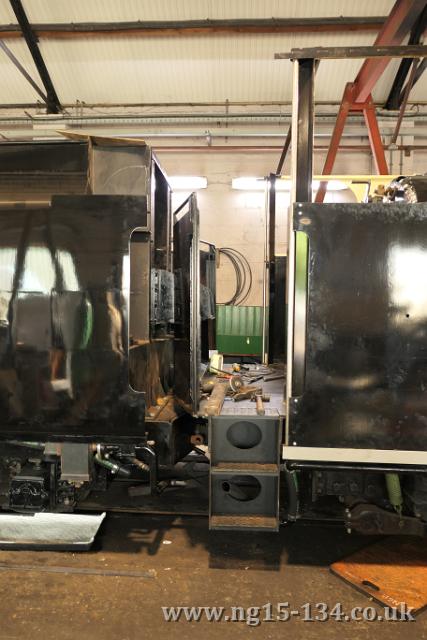

The tender and loco positioned at their correct spacing to verify the length needed for the drawbar vs the drawing.
Photo: Laurence Armstrong

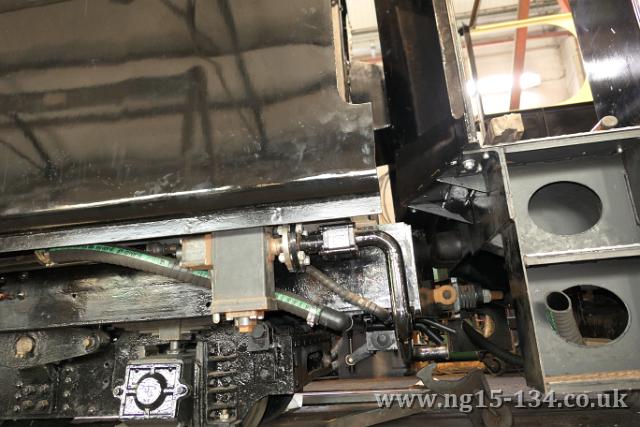

Various pieces of hoses added to the tender vac pipe.
Photo: Laurence Armstrong

The drivers view.... so far!
Photo: Andrew Cole
