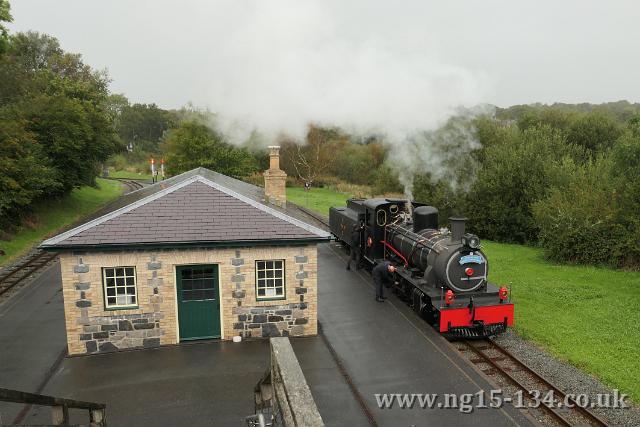

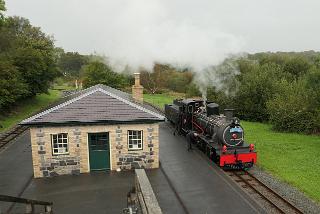

№134 being attended to at Waunfawr following its gauging run there.
Photo: Laurence Armstrong

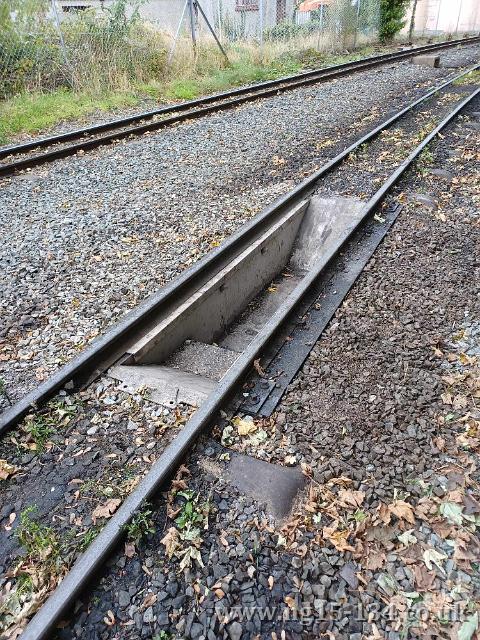

The ashing out pit has had its protective strip added to protect the longitudinal plastic sleepers from being damaged by hot ash.
Photo Andrew Cole

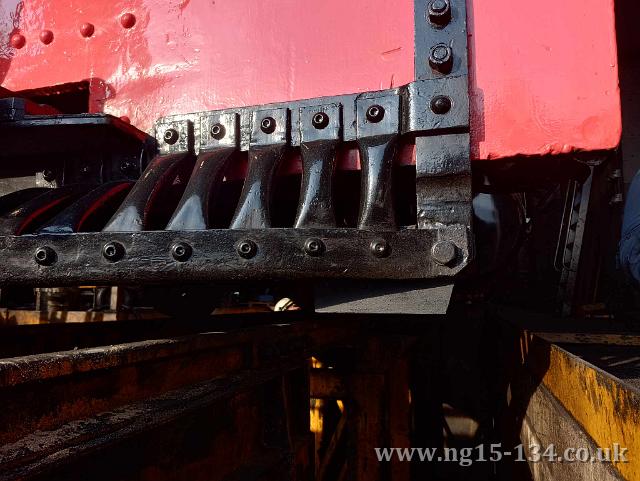

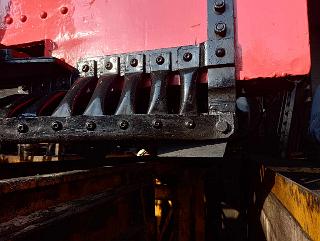

It was felt that as the cylinder drain cocks hang slightly lower than the cowcatcher they could be vulnerable to striking debris on the track. A protective extension has therefore been provided in the hope of preventing damage.
Photo Andrew Cole

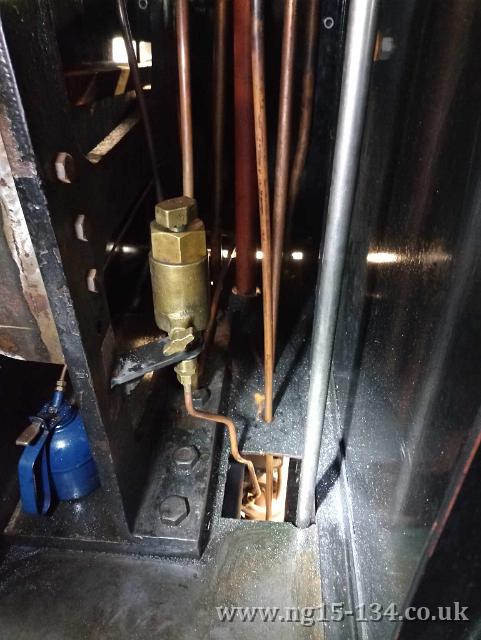

A displacement lubricator has been fitted to lubricate the steam brake cylinder.
Photo Andrew Cole

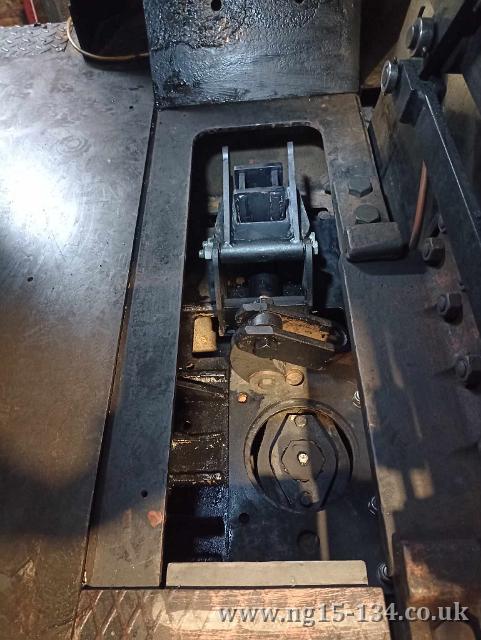

The Mechanism for the rocking grate is to be found under a removable cover in the cab floor.
Photo Andrew Cole

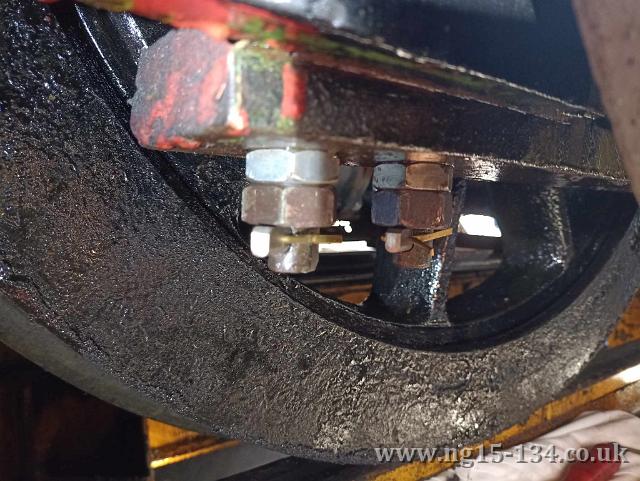

The axlebox tie bars are being finished off with the fastening cotters being secured with split pins.
Photo Andrew Cole
