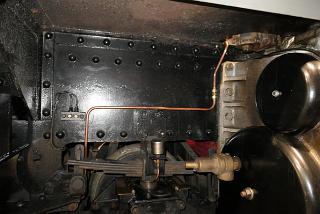

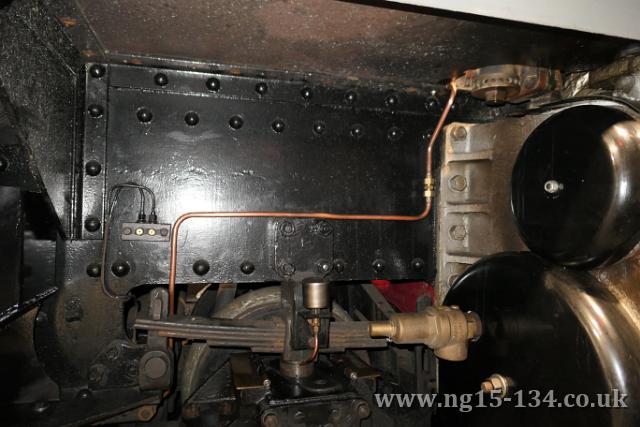

The pipework continues...... this time working its way from the cab to the sanders, in this case the fireman's side front sander. The join here is required to break the run to make it manageable to install, and to remove should the need arise.
Photo: Laurence Armstrong

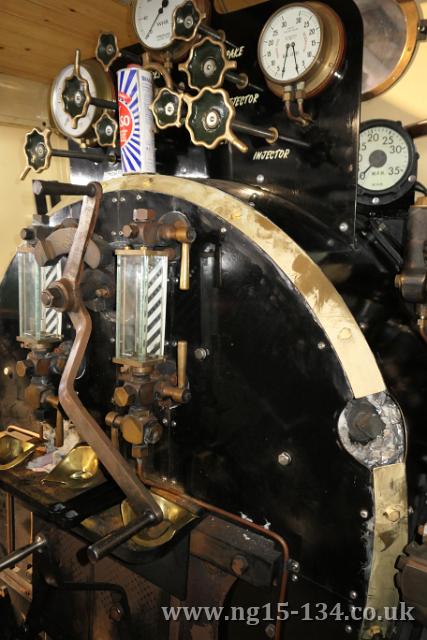

The newly made brass cladding 45° fillets in the cab have been tweaked to fit better and then the void behind was topped-up with insulation. They were then coated with Brasso for protection.
Photo: Laurence Armstrong

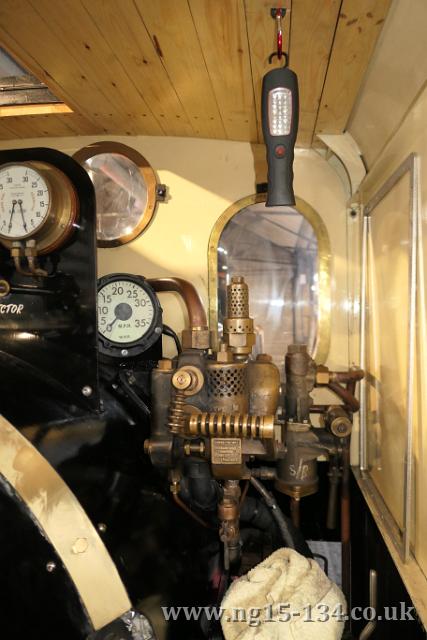

The drivers view showing the recently installed speedometer. And NO, we're not intending doing 35MPH!!
Photo: Laurence Armstrong

The fireman's side sandbox filler.
Photo: Laurence Armstrong

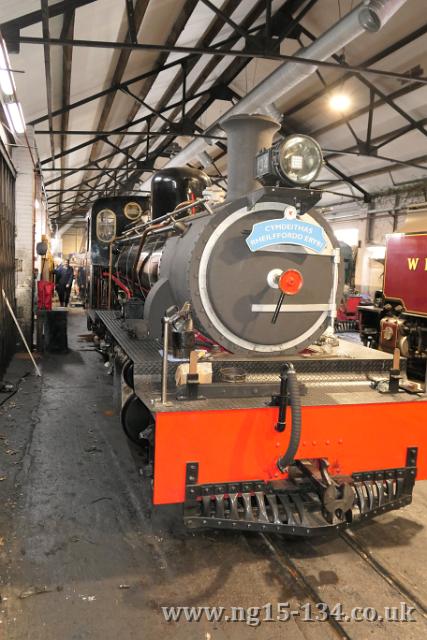

A view of No.134 at the end of the weekend.
Photo: Laurence Armstrong

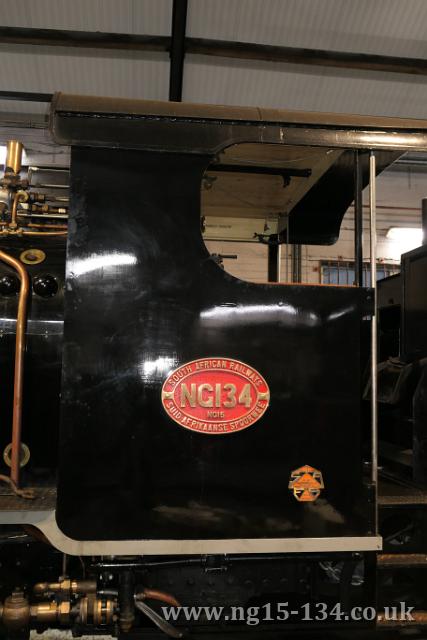

The cab side and its plates.
Photo: Laurence Armstrong

We're currently revisiting the window frames with a revised, and better set of castings. In the meantime however, and whilst these the new ones are finished off, we've fitted acrylic glass to the existing ones for future trial running.
Photo: Laurence Armstrong

This is one of the new window frames being worked on using a dummy cab section as a help toward checking it for its fit.
Photo: Erle Ford

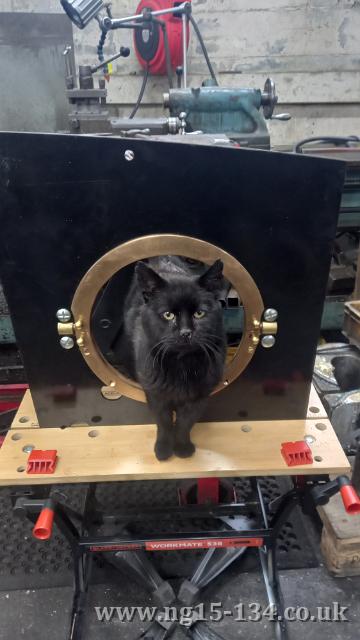

And before the glass went in Tommy, the resident works cat, thought he'd try it out as a cat-flap.
Photo: Erle Ford

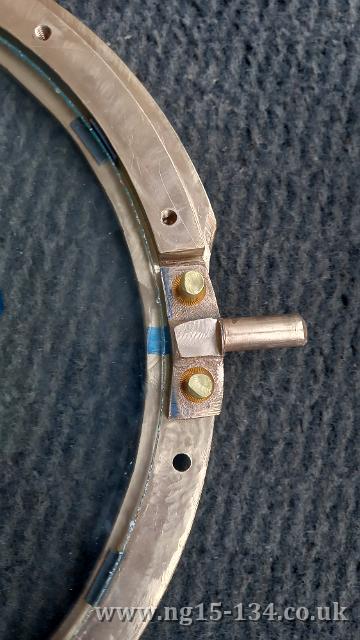

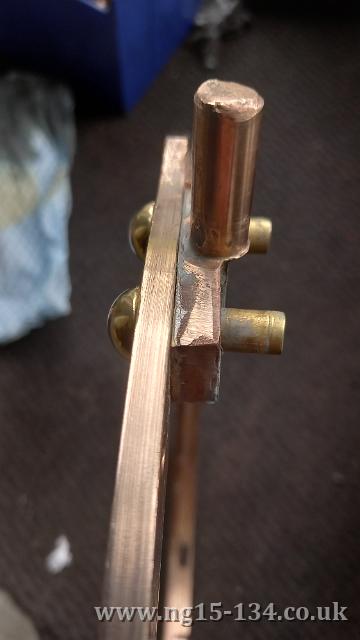

Detail of the window hinge pin.
Photo: Erle Ford

Detail of the window hinge pin.
Photo: Erle Ford

The assembled window before fitting into the dummy cab section.
Photo: Erle Ford
