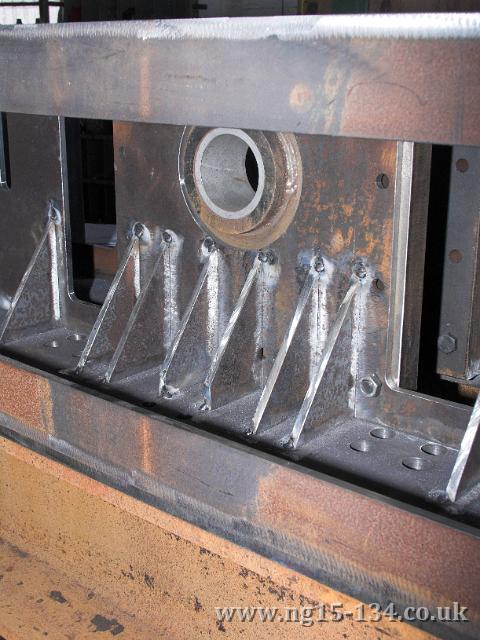

The bracing seen inside the structure.
Photo: Laurence Armstrong

The internal bracing seen from above as on the bench but what will be the front when fitted.
Photo: Laurence Armstrong

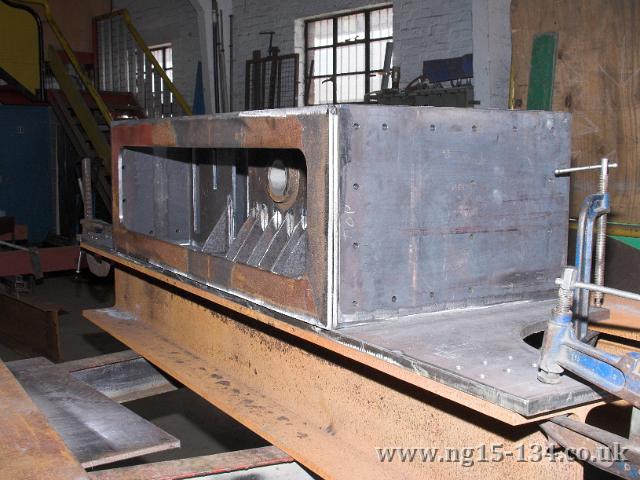

The rear dragbox on the bench at Brunswick Ironworks.
Photo: Laurence Armstrong

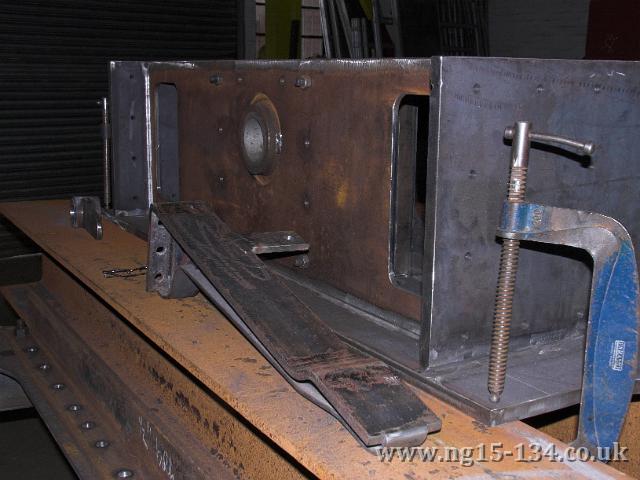

The underside view of the dragbox. In front is one of the new cab floor supports.
Photo: Laurence Armstrong

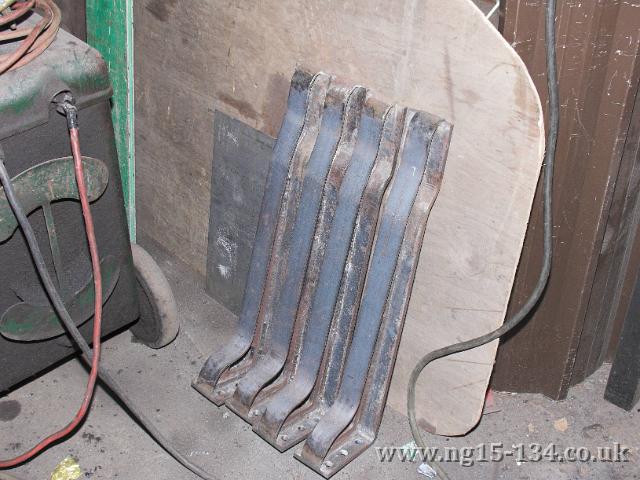

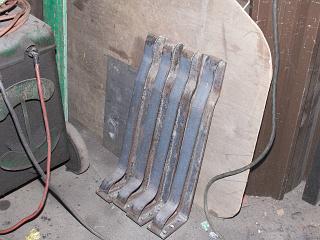

Four of the cab floor supports.
Photo: Laurence Armstrong

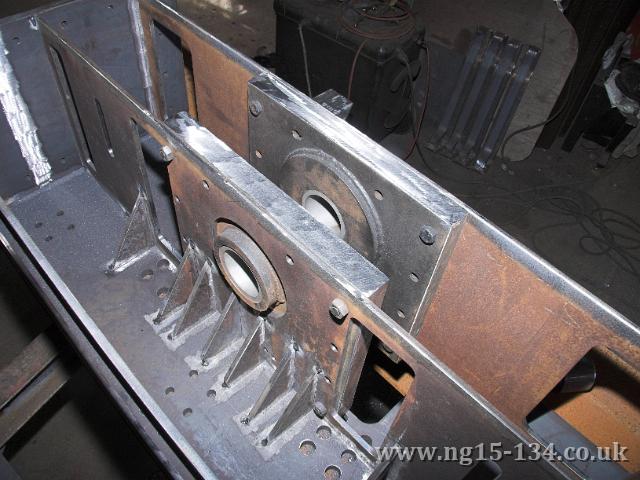

The top view of the dragbox. This will be covered over when complete. The rectangular holes are where the rocking grate operating mechanism will be located.
Photo: Laurence Armstrong

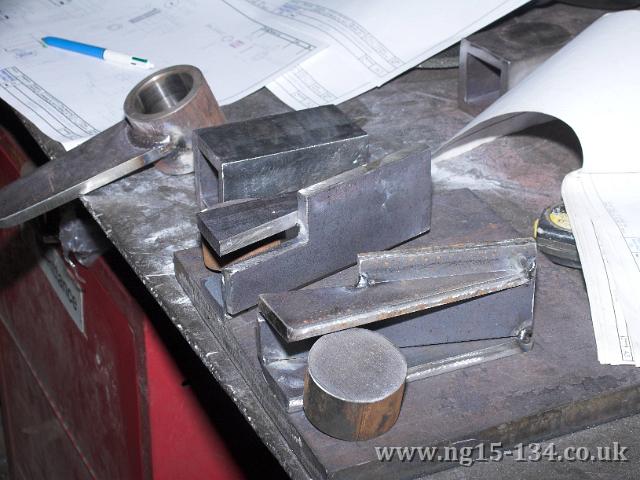

The components for the rocking grate mechanism.
Photo: Laurence Armstrong

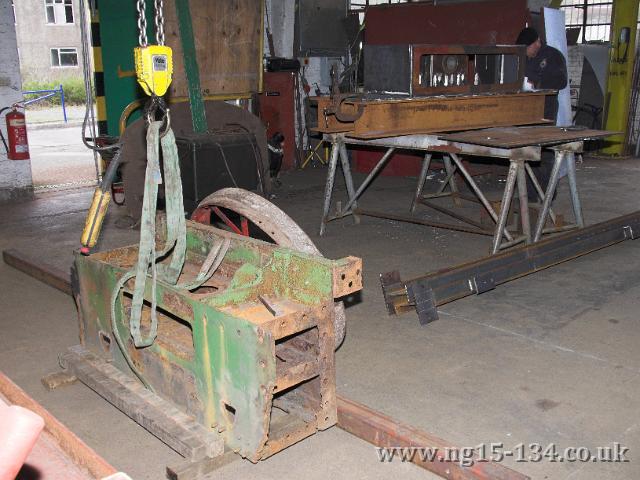

The new dragbox on the bench with its condemned predecessor in the foreground.
Photo: Laurence Armstrong

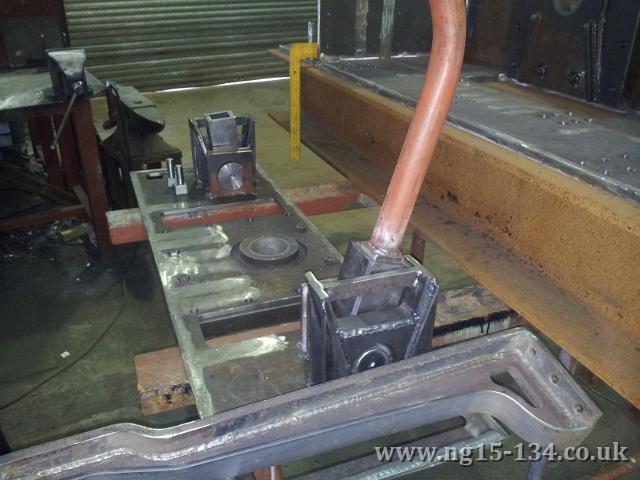

The dragbox was still being worked on in June 2013. Here the internal mechanism for the rocking grate can be seen.
Photo: Andie Shaw

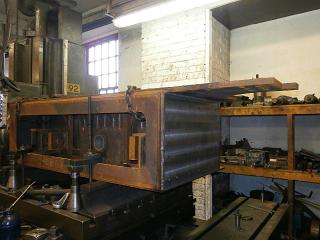

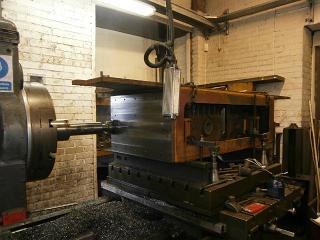

On the last few days of July 2013 the dragbox side faces were being accurately machined to go between the frames.
Photo: Jon Whalley

The dragbox side faces after being accurately machined to go between the frames.
Photo: Jon Whalley

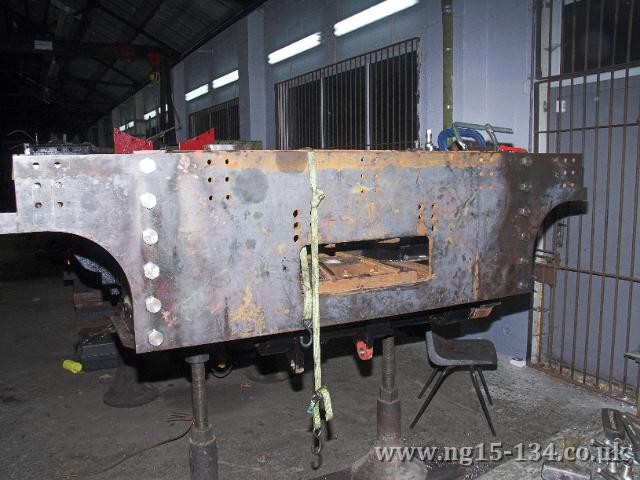

The rear drag box fitted into place as seen on the 12th October 2013.
Photo: Laurence Armstrong

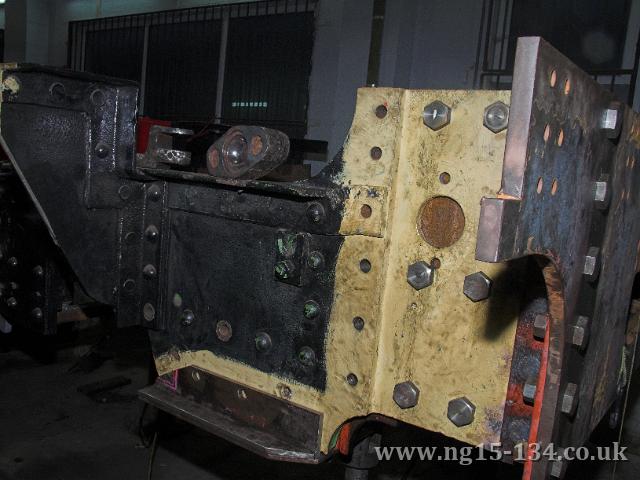

The rear drag box in place but with some fitted bolts still to be inserted.
Photo: Laurence Armstrong

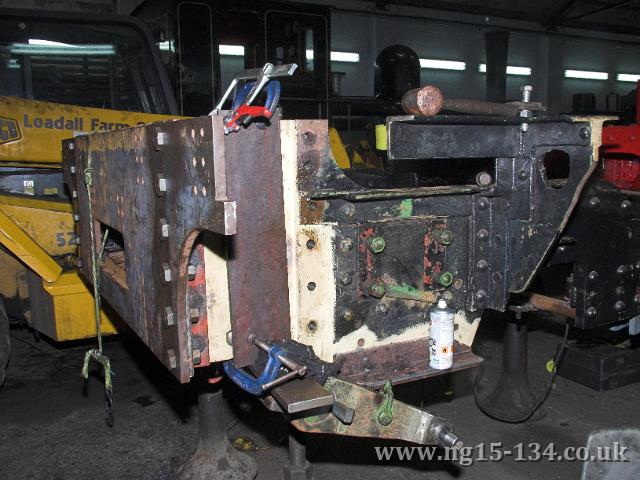

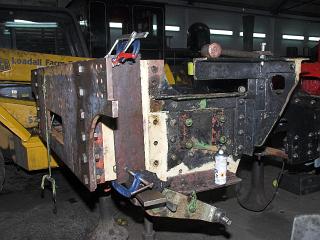

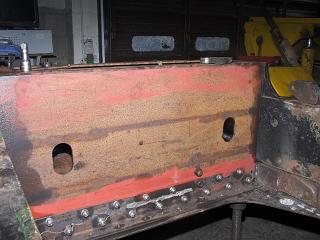

The rear drag box showing the fitted bolts on the left hamd side attaching it to the frames .
Photo: Laurence Armstrong

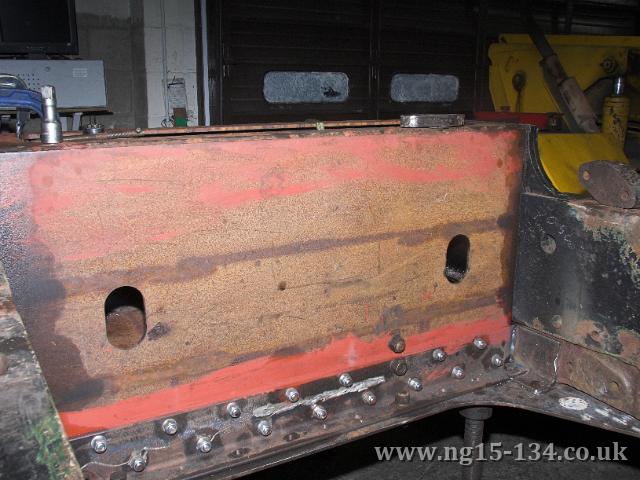

An upper view from inside the frames showing the front face of the drag box. The two holes are where the push rods will emerge for the rocking grate, the mechanism being hidden inside the drag box.
Photo: Laurence Armstrong

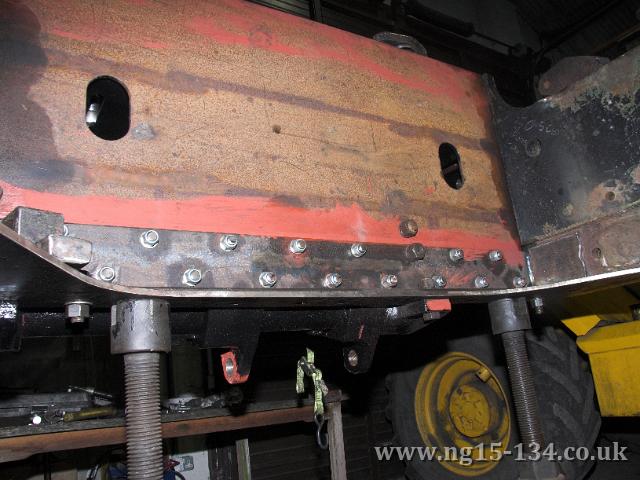

A lower view from inside the frames shoing the front side of the drag box.
Photo: Laurence Armstrong
